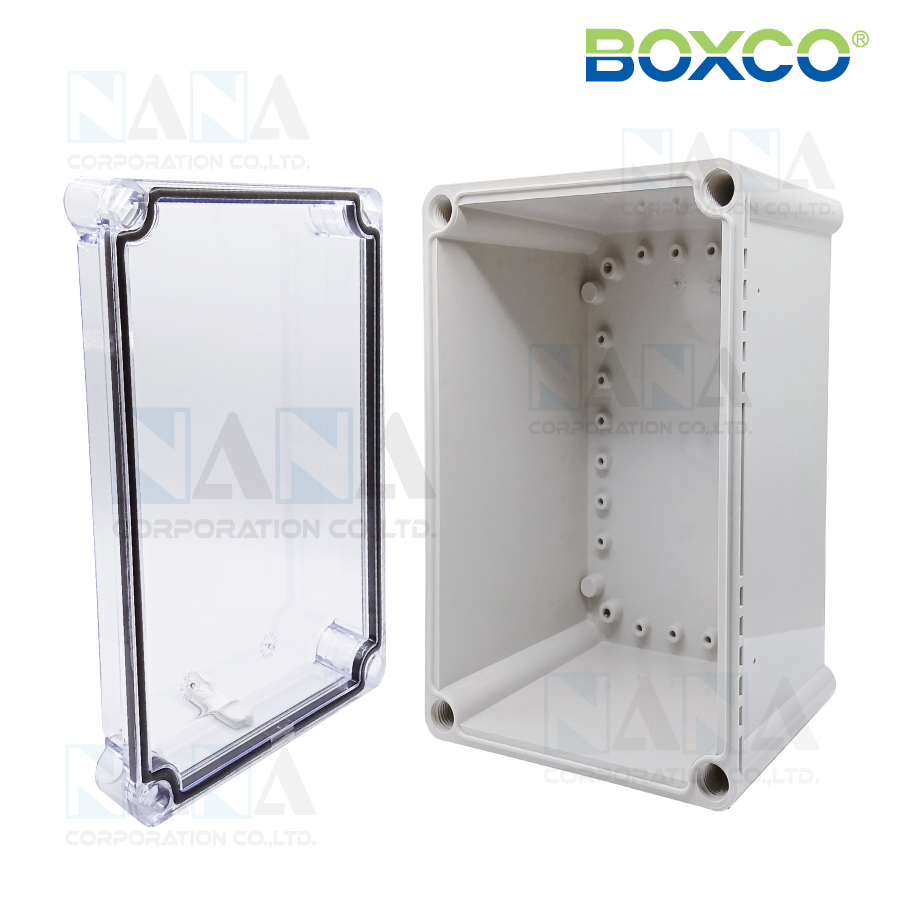

BC-ATS-192818 BOXCO, S Series Medium Size, ABS, Clear Cover
Attribute:
กล่องพลาสติกกันน้ำฝาใส IP66/67 แบบสกรู 4 มุม หล่อขึ้นเชื่อมต่อกับฐาน แบบบานเลื่อน 4 ด้าน แข็งแรงทนต่อแรงกระแทก ขนาด(190x280x180mm)
Share
Categories : Enclosure Boxes - Cabinet , Plastic Enclosure Box ,
Brand : BOXCO
Share
S Series Medium Size
FEATURE
- Screw type, insert
SPECIFICATION
- IP Rating | IP66/67
- IK Rating | IK08
- Temperature range| ABS : 40 ~ + 70 PC : - 40 ~ + 110
- Flammability Rating |ABS : 94-HB PC : 94-V-0, 5VA, HB
- Certification|TUV, CE, UL
S SERIES model name
Material | A : ABS C : PC
Cover | G : Grey T : Transparent
Type | Screw Cover
Width | (W)
Length | (L)
Height | (H)
| Size(included cover) | Model | Mounting Plate | |||||
|---|---|---|---|---|---|---|---|
W X L X H (mm) | W X L X H (inch) | ABS | PC | Steel 1.6mm | Plastic 3~4.5mm | ||
Grey cover | Transparent cover | Grey cover | Transparent cover | ||||
| 190×190×130 | 7.48×7.48×5.12 | BC-AGS-191913 | BC-ATS-191913 | BC-CGS-191913 | BC-CTS-191913 | 1919 S | 1919 P |
| 190x280x100 | 7.48x11.02x3.94 | BC-AGS-192810 | BC-ATS-192810 | BC-CGS-192810 | BC-CTS-192810 | 1928 S | 1928 P |
| 190×280×130 | 7.48×11.02×5.12 | BC-AGS-192813 | BC-ATS-192813 | BC-CGS-192813 | BC-CTS-192813 | 1928 S | 1928 P |
| 190×280×180 | 7.48×11.02×7.09 | BC-AGS-192818 | BC-ATS-192818 | BC-CGS-192818 | BC-CTS-192818 | 1928 S | 1928 P |
| 190×380×130 | 7.48×14.96×5.12 | BC-AGS-193813 | BC-ATS-193813 | BC-CGS-193813 | BC-CTS-193813 | 1938 S | 1938 P |
| 190×380×180 | 7.48×14.96×7.09 | BC-AGS-193818 | BC-ATS-193818 | BC-CGS-193818 | BC-CTS-193818 | 1938 S | 1938 P |
| 280×280×130 | 11.02×11.02×5.12 | BC-AGS-282813 | BC-ATS-282813 | BC-CGS-282813 | BC-CTS-282813 | 2828 S | 2828 P |
| 280×340×130 | 11.02×13.39×5.12 | BC-AGS-283413 | BC-ATS-283413 | BC-CGS-283413 | BC-CTS-283413 | 2834S | 2834 P |
| 280×380×130 | 11.02×14.96×5.12 | BC-AGS-283813 | BC-ATS-283813 | BC-CGS-283813 | BC-CTS-283813 | 2838 S | 2838 P |
| 280×380×180 | 11.02×14.96×7.09 | BC-AGS-283818 | BC-ATS-283818 | BC-CGS-283818 | BC-CTS-283818 | 2838 S | 2838 P |
280×560×130 | 11.02×22.05×5.12 | BC-AGS-285613 | BC-ATS-285613 | BC-CGS-285613 | BC-CTS-285613 | 2856 S | |
330×430×180 | 12.99×16.93×7.09 | BC-AGS-334318 | BC-ATS-334318 | BC-CGS-334318 | BC-CTS-334318 | 3343 S | 3343 P |
380×560×180 | 14.96×22.05×7.09 | BC-AGS-385618 | BC-ATS-385618 | BC-CGS-385618 | BC-CTS-385618 | 3586 S | |
