SPP F
Small pyramidal grommets

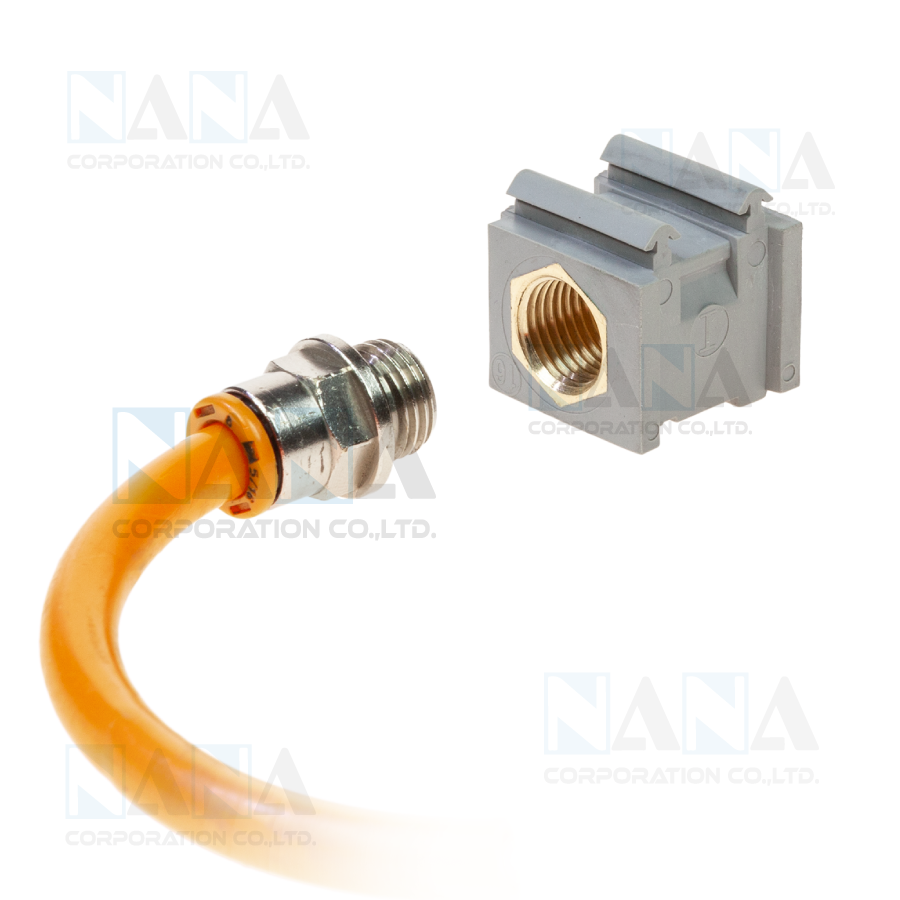

The SPP F series features metric and inch threads grommets, which allows quick-connection for pneumatics or M8 M12 connectors irectly on the grommet. The plug-in system is added to the standard terminated cables or pneumatic connections
Features

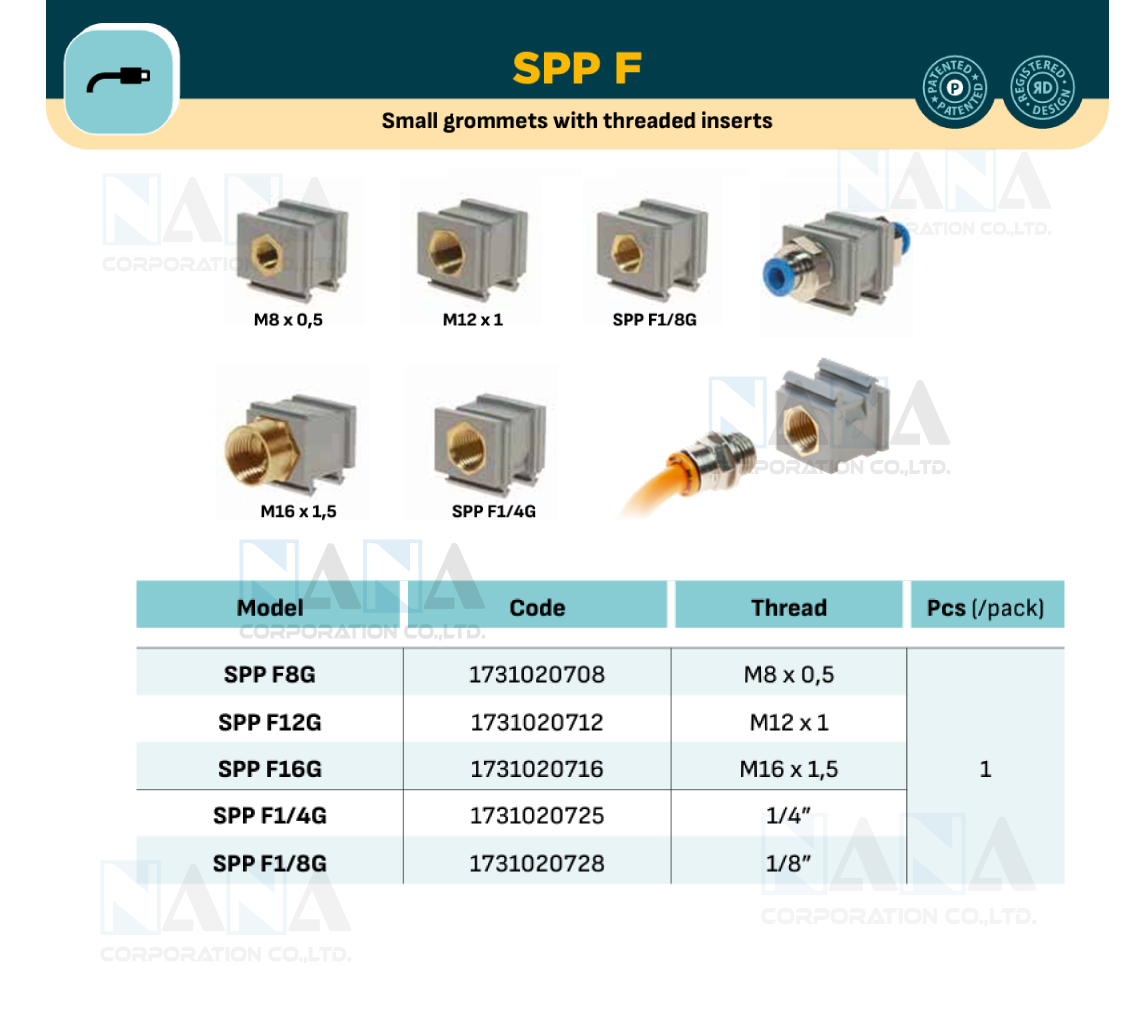

- Small grommets with threaded inserts
- Panel connectors not included: available on request
- IP66
- UL94-V0 for both colours
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: TPE
Flammability: self-extinguishing according to UL94-V0 (grey or black)
Temperature: -40°C... +110°C (static)
Compatible Grommets
 SPP P |  SPP F |  SPP 2x |  SPP M |  SPP VENT |  SPP 4x |
 SPG WP |  SPP R |  SPG P |  SPG EMC |  SPG W22 |  SPG Y |
 SPG W |  SPG K |  SPG |  SPP |  SPG M |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
