Divisible locknuts allow large connector cables to pass through, facilitating machinery wiring.
Share
Categories : Cable gland , Cable Entry System , Accessories ,
Share
DDMD

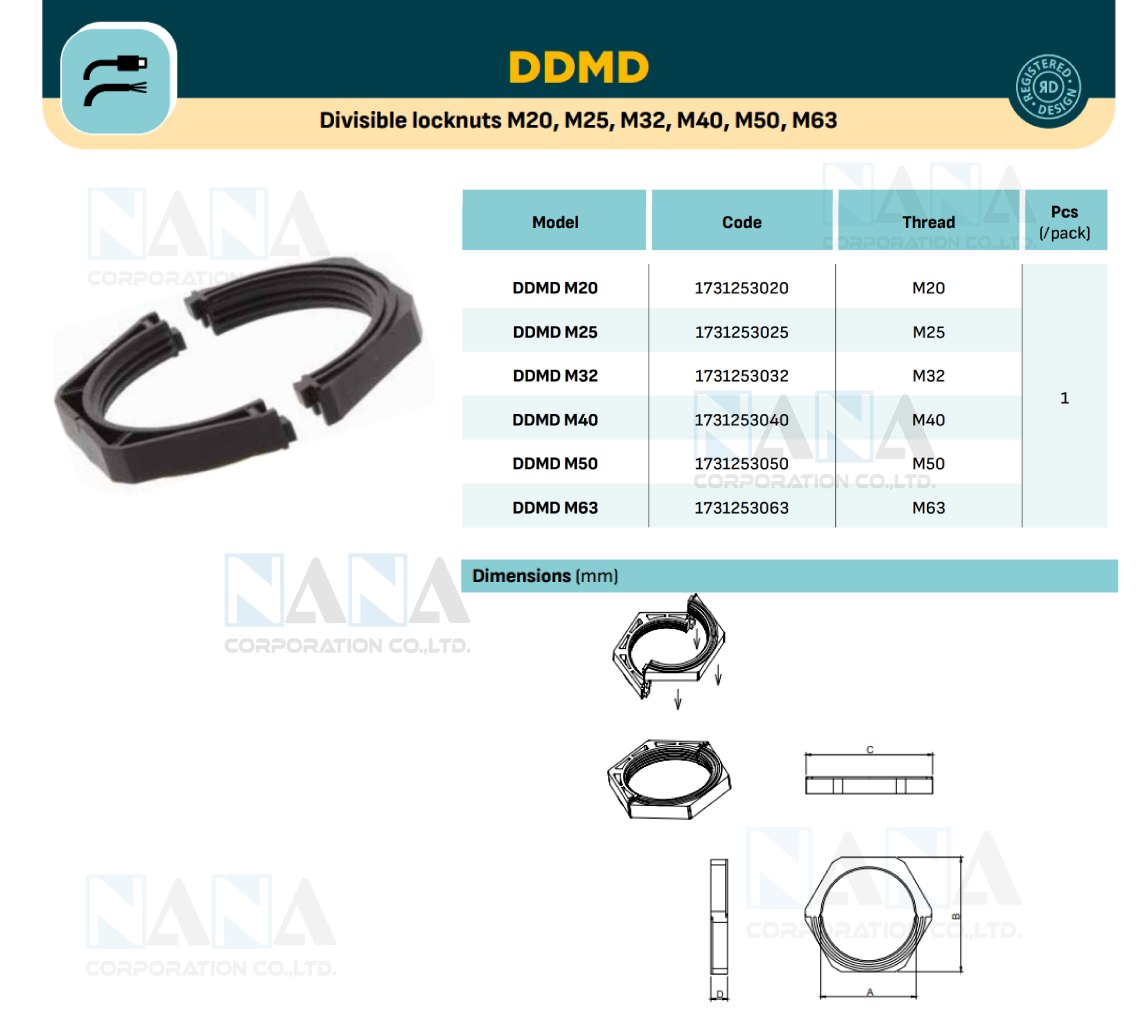

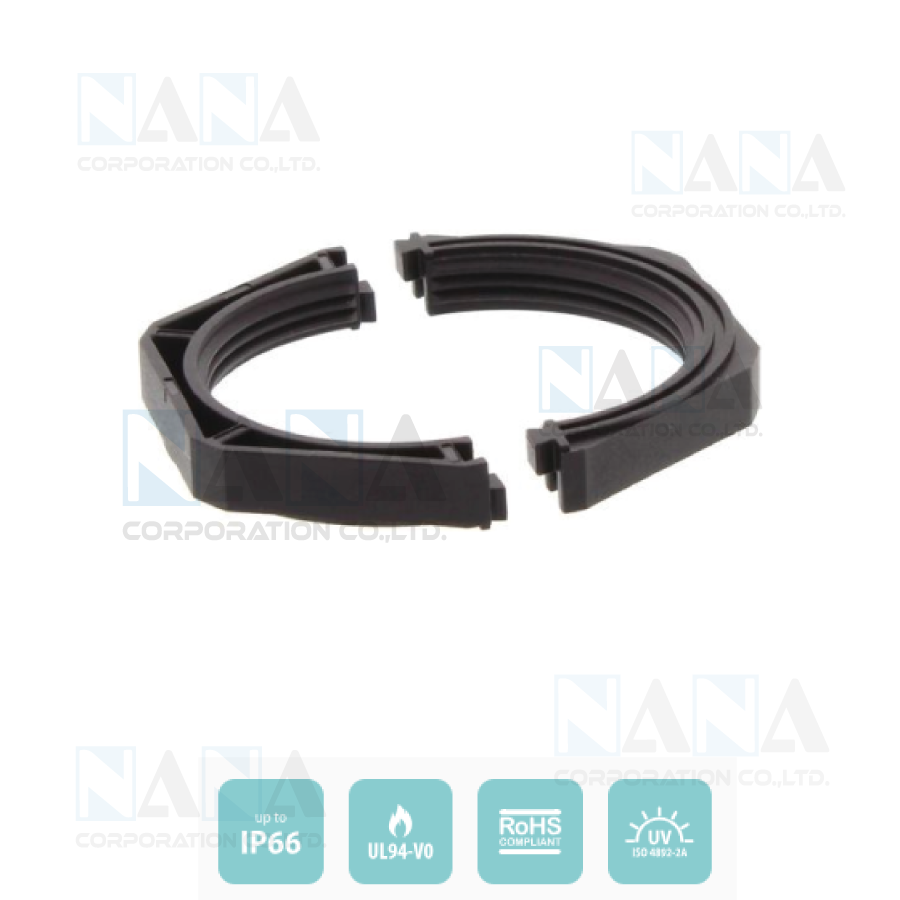

DDMD series openable locknuts are used to allow the routing of connectors which are dimensionally larger than conventional locknuts. They are available in 6 sizes all for metric threads: M20, M25, M32, M40, M50, M63.
Features
- Divisible metric locknuts
- Black color
- Recommended tightening torque 7 Nm
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: PA66
Flammability: self-extinguishing according to UL94-V2
Temperature: -40°C.... +120°C (static)
