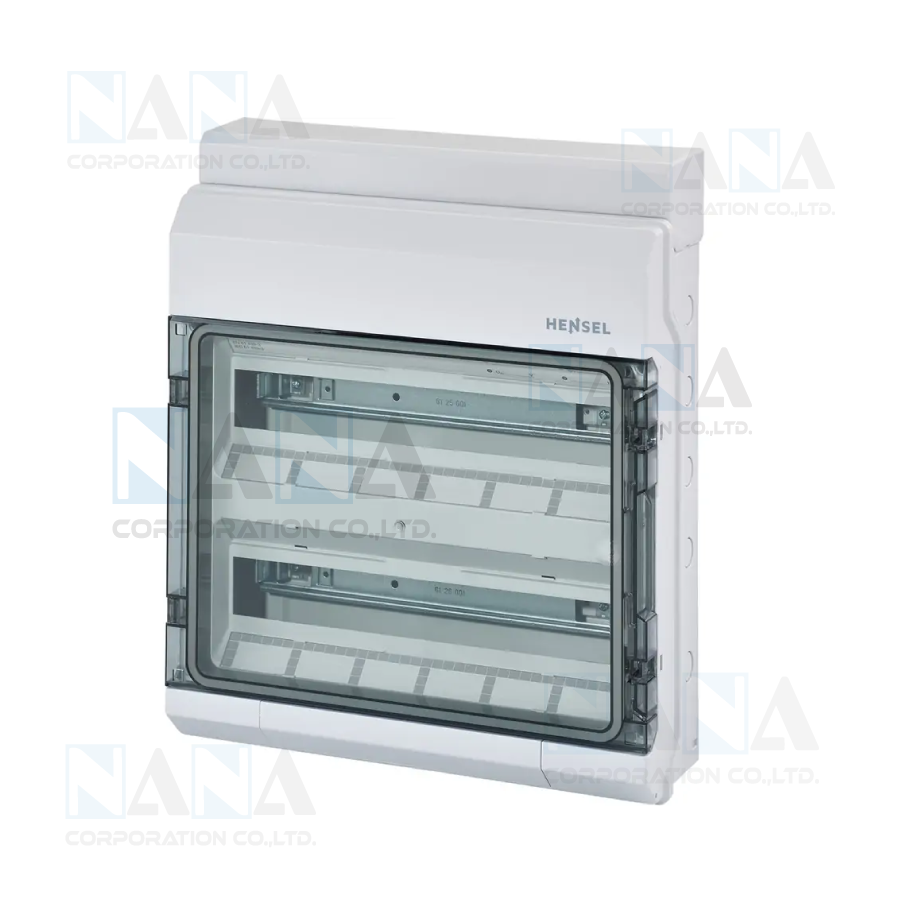

KV 9236 , HENSEL Circuit breaker boxes 36 modules IP65
Attribute:
Hensel, Circuit Breaker 36 Modules, Small-type distribution board with terminal, Size: 2x18x18mm.
Share
Categories : Circuit Breaker Box ,
Brand : HENSEL
Share
KV 9236 , HENSEL Circuit breaker boxes 36 modules IP65
Hensel, KV9236 Box, Circuit Breaker 36 Modules, c/w Terminals IP65, KV Small-Type Distribution Boards, Circuit Breaker Boxes. Size: 2x18x18mm, Finish: Grey
Feature:
- 36 modules: 2 x 18 x 18 mm
- 2-row
- per PE/N number x cross section 8 x 25 mm², 32 x 4 mm² Cu, FIXCONNECT® terminal technology, for terminal technology refer to technical data
- N separable, up to 4 different potentials
- for the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
- with transparent door
- for door locking device and sealing device refer to accessories
- with cable entry cover
- with blanking strips for unused DIN rail openings
- cable entry via integrated elastic membranes
- degree of protection: IP 65
- colour: grey, RAL 7035
