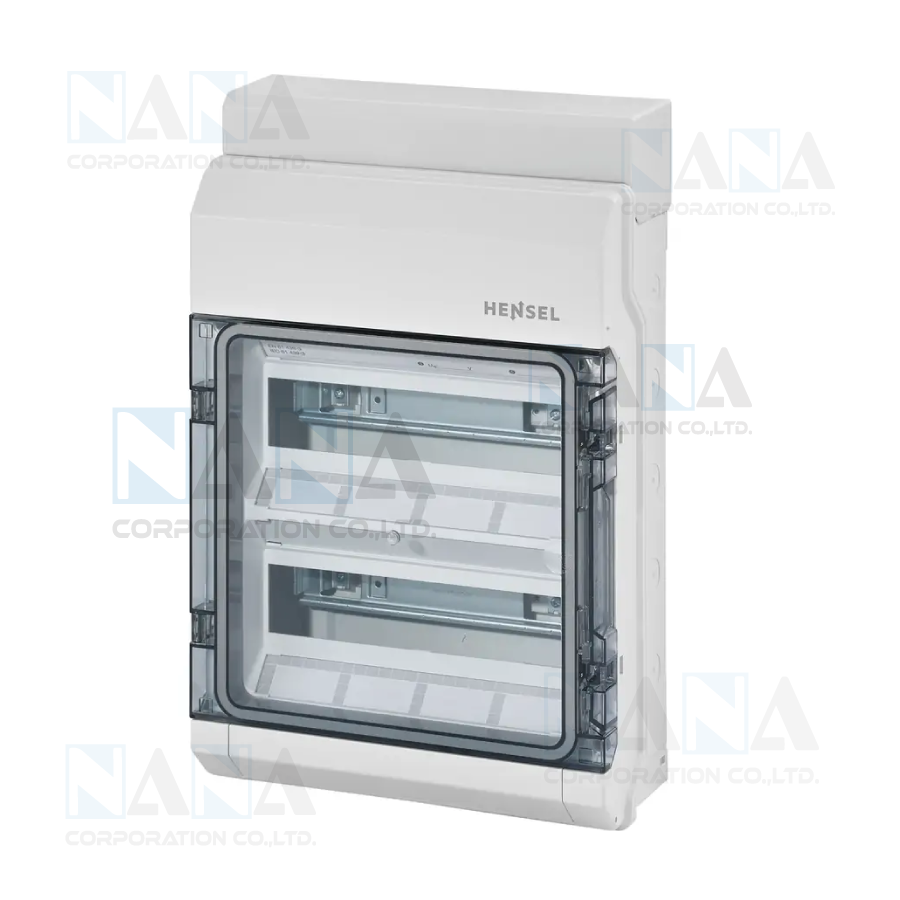

KV 2524, HENSEL Circuit breaker boxes 24 modules IP54
Attribute:
Hensel, Circuit Breaker 24 Modules, 2-row, KV Small-Type Distribution Boards, Size: 2x12x18mm.
Share
Categories : Circuit Breaker Box ,
Brand : HENSEL
Share
KV 2524 HENSEL Circuit breaker boxes 24 modules IP54
Hensel, KV2524 Box, Circuit Breaker 24 Modules, Elastic Membrane IP54, KV Small-Type Distribution Boards, Circuit Breaker Boxes. Size: 2x12x18mm, Finish: Grey
Feature:
- 24 modules: 2 x 12 x 18 mm
- 2-row
- per PE/N number x cross section 6 x 25 mm², 24 x 4 mm² Cu, FIXCONNECT® terminal technology, for terminal technology refer to technical data
- N separable, up to 4 different potentials
- for the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
- with transparent door
- for door locking device and sealing device refer to accessories
- with cable entry cover
- with blanking strips for unused DIN rail openings
- degree of protection: IP 54
- colour: grey, RAL 7035
