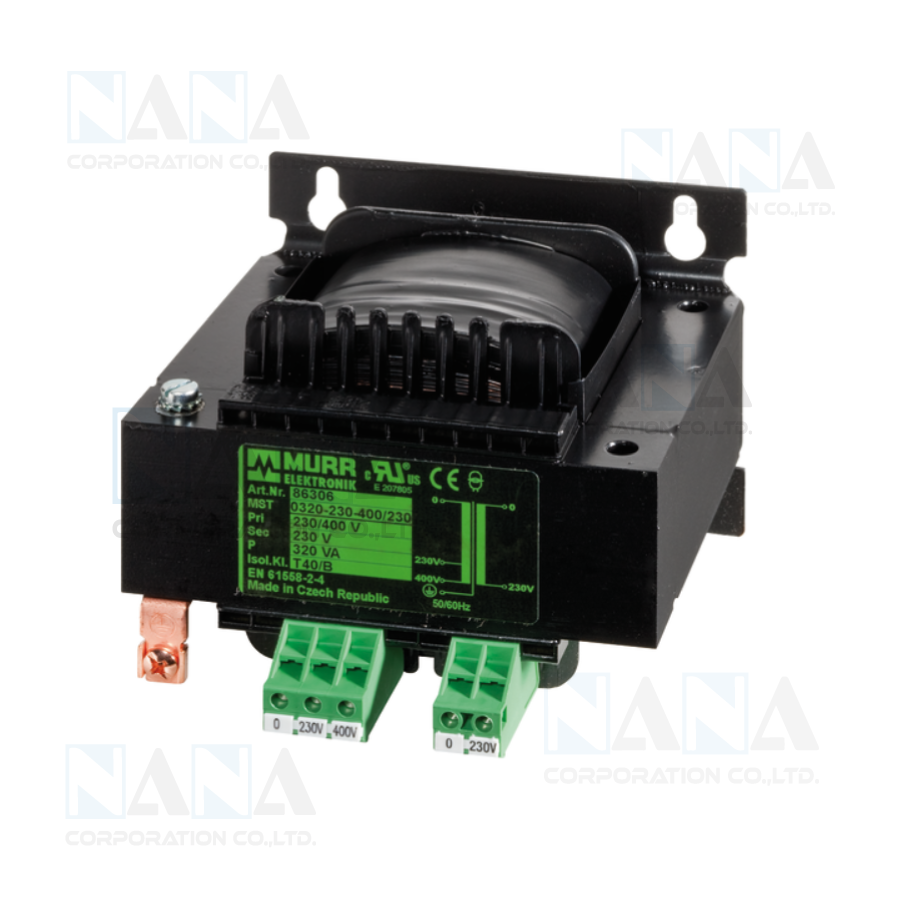

MST SINGLE-PHASE CONTROL AND ISOLATION TRANSFORMER

Name: MST SINGLE-PHASE CONTROL AND ISOLATION TRANSFORMER
Brand: MURR
SKU: Murr 866199
Availability: InStock

Attribute:

Art.No. 866199, P:415VA IN:230/400/460VAC±10VAC±20VAC OUT:24/230VAC, Weight: 6.7 kg.

Categories : Electronics In the Control Cabinet ,

Brand : MURR

MST SINGLE-PHASE CONTROL AND ISOLATION TRANSFORMER

Art.No.: 866199, P:415VA IN:230/400/460VAC±10VAC±20VAC OUT:24/230VAC, Weight: 6.7 kg, Single-phase - Control and Isolation Transformers, 415 VA, Isolation class T 40/B

Input

Input voltage	230/400/460 V AC
Inrush current	10 A (230 V AC); 5 A (460 V AC)
Short-circuit current	29 A (230 V AC); 15 A (460 V AC)
Input current	2.1 A (230 V AC); 1 A (460 V AC)
Frequency	50...60 Hz

General data

Test isolation voltage	4 kV (prim./sec.)
Standards	EN 61558-1, EN 61558-2-6, EN 62041 category 0
Mounting method	Key-hole mounting
Fixing centers a × b × c	105.6×122×7 mm
Drill hole Ø	7×11 mm
Dimensions H × W × D	112.5×150×150 mm
Temperature range	-20...+40 °C (storage temperature -40...+80 °C)

Output

Output voltage	24/230 V AC (SELV)
Output rating	415 VA
