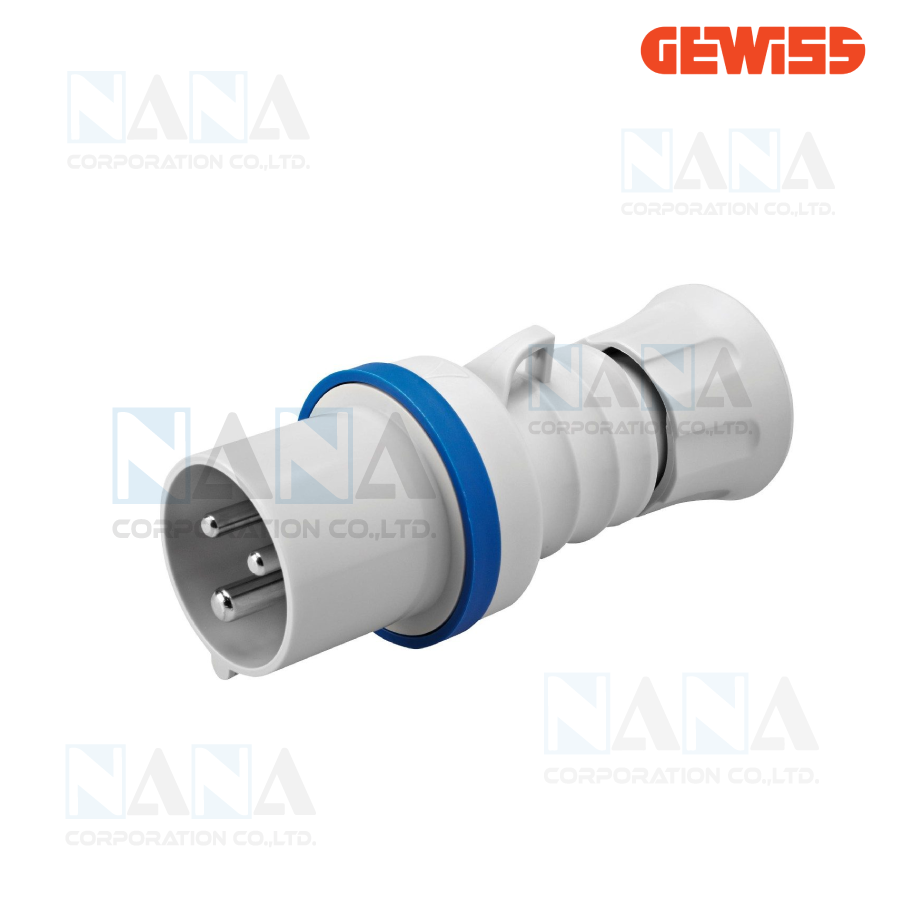

GW60004FH, IEC 309 HP range STRAIGHT PLUG
Attribute:
The 16-32A versions require screw or quick spring wiring, while the 63-125 A versions employ branching terminal connection technology
Share
Categories : Power Plug ,
Brand : GEWISS
Share
The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125A in two different versions – straight mobile and 10° flush-mounting – available in protected versions with IP44/IP54 degree of protection and watertight versions with IP degree of protection of up to IP66/IP67/IP68/IP69 (the first and only on the electro-technical scene to have this). The introduction of all the clock references for the earthing contact completes the range for specific applications and installations. The 16-32A versions require screw or quick spring wiring, while the 63-125 A versions employ branching terminal connection technology.
| PART Number | GW60004FH |
| Color | Blue |
| IP degree | IP44/IP54 |
| Mechanical resistance | IK09 |
| Rated voltage | 200-250 V |
| Frequency | 50/60 Hz |
| Cable clamp tightening capacity | 7.5-13.8 mm |
| Type of wiring | Quick, with spring |
| Electrocod | 2230 |
| Total number of operations | > 5000 |
| Breaking capacity at 1.1 Un | 20 A |
| Thermo-pressure with ball | 125 °C (active parts) - 80 °C (passive parts) |
| Rated current (A) | 16 |
| No. of poles | 2P+E |
| Reference h | 6 |
| Type | Straight plug |
| Terminal tightening capacity | 1-2.5mm² flexible cables - 1.5-4mm² rigid cables |
| Operating temperature | -25 +55 °C |
| Type of material | Halogen-free in compliance with EN 60754-2 |
| Glow wire test | 850 °C (active parts) - 650 °C (passive parts) |
| Permissible overload | 22 A |
| Insulation resistance | > 10 M |
