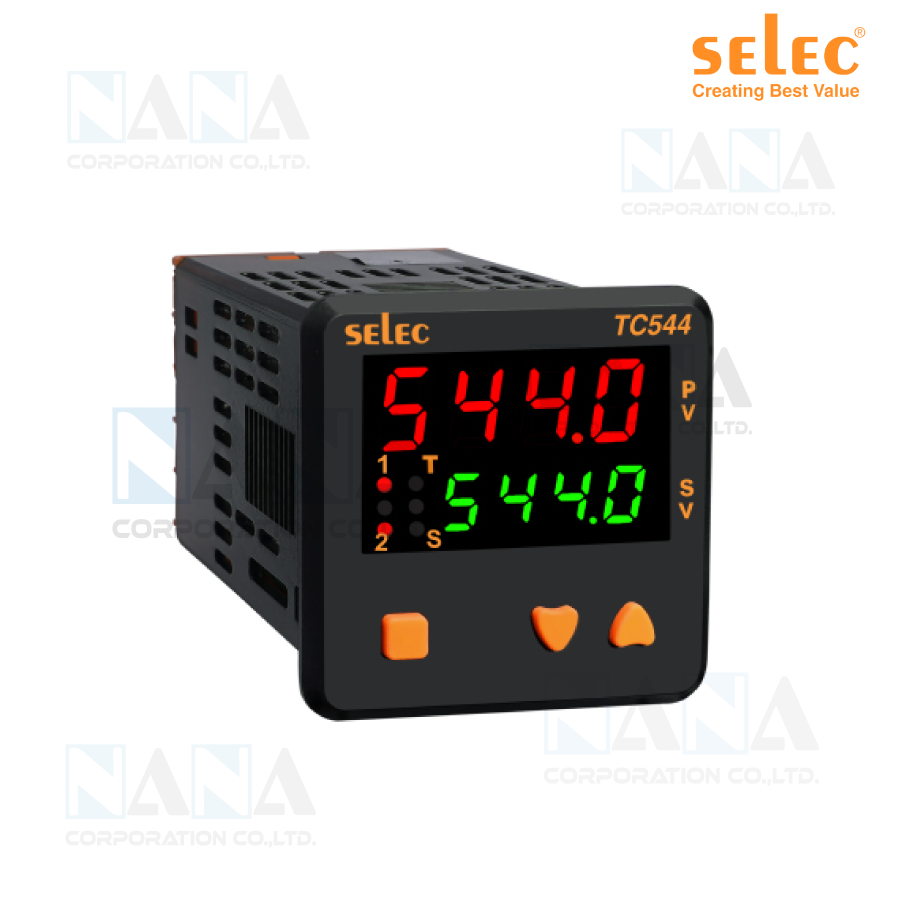

TC544A, Dual Display, Dual Set Point, Relay/SSR+ Relay Output
Attribute:
4 digit Dual display temperature controller, (TC: J, K, T, R, S/ RTD: PT100) sensor input, 48 x 48 mm compact size, CE, RoHS & UL
Share
Categories : Monitoring & Protection Relay ,
Brand : SELEC
Share
Specifications
| Display Type | 7 Segment LED Dual Display |
| Display Configuration | 4 + 4 Digits |
| Type of Input | Thermocouple (J,K,T,R,S) / RTD (PT100) |
| Accuracy | For TC (J, K, T) inputs: 0.25% of F.S. ± 1 °For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1 |
| Resolution | 0.1/1° for TC / RTD (fixed 1° for R and S TC) |
| Control Output | RELAY or SSR |
| Auxiliary Output | RELAY |
| Feature | Heat Cool PID , Dwell Timer |
| Control Mode | PID or ON/OFF |
| Supply Voltage | 85 to 270V AC / DC |
| Size | 48 x 48mm |
| Mounting Type | Panel Mount |
| Certification | CE & UL |
