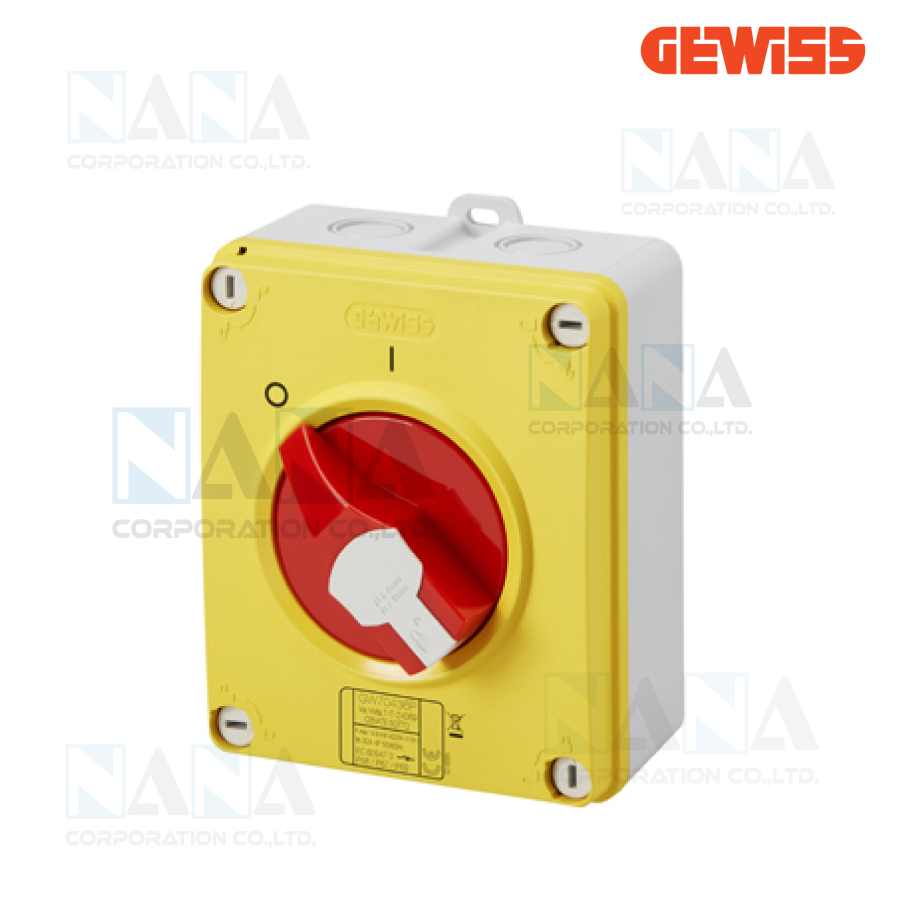

ISOLATOR-HP-EMERGENCY-ISOLATING MATERIAL BOX-16A-160A- LOCKABLE RED KNOB, IP66
Attribute:
GEWISS Safety Switch, For Air conditioning systems, Lifts, Ventilation and vacuum installations.
Share
Categories : Safety Switch ,
Brand : GEWISS
Share
70 RT HP is a new range of surface mounted rotary isolators available with plastic or metal boxes, in versions from 16A to 160A, for control (black knob) or emergency (red knob) applications. The range includes distribution board options for front-panel or DIN rail assembly, in 16 to 63A options, all of which can be equipped with auxiliary contacts. The isolators guarantee an innovative IP degree up to IP66/IP67/IP69 and they have been designed to reduce wiring time, simplifying installation, and offer maximum safety and durability.
Applications :
- Air conditioning systems
- Lifts
- Ventilation and vacuum installations
- Industrial kitchens
- Technical rooms
- Industrial automation
| SURFACE-MOUNTING ISOLATOR - CONTROL VERSION WITH LOCKABLE BLACK KNOB - IP66/IP67/IP69 | |||||
| Code | No. of poles | Outer dim (LxHxD)mm. | Holes entry | Pack Carton | DataSheet |
| Rated current (A): 16 | |||||
| GW 70 431 M | 2P | 140X165X64 | 4 x M20 | 1 | |
| GW 70 432 M | 3P | 140X165X64 | 4 x M20 | 1 | |
| GW 70 432 NM | 3P+N | 140X165X64 | 4 x M20 | 1 | |
| GW 70 433 M | 4P | 140X165X64 | 4 x M20 | 1 | |
| Rated current (A): 25 | |||||
| GW 70 486 M | 2P | 140X165X64 | 2 x M20+ 2 x M25 | 1 | |
| GW 70 487 M | 3P | 140X165X64 | 2 x M20+ 2 x M25 | 1 | |
| GW 70 487 NM | 3P+N | 140X165X64 | 2 x M20+ 2 x M25 | 1 | |
| GW 70 488 M | 4P | 140X165X64 | 2 x M20+ 2 x M25 | 1 | |
| Rated current (A): 32 | |||||
| GW 70 434 M | 2P | 140X165X64 | 2 x M20+ 2 x M25 | 1 | |
| GW 70 435 M | 3P | 140X165X64 | 2 x M20+ 2 x M25 | 1 | |
| GW 70 435 NM | 3P+N | 140X165X64 | 2 x M20+ 2 x M25 | 1 | |
| GW 70 436 M | 4P | 140X165X64 | 2 x M20+ 2 x M25 | 1 | |
| Rated current (A): 40 | |||||
| GW 70 441 M | 2P | 140X165X64 | 2 x M20+ 2 x M25 | 1 | |
| GW 70 442 M | 3P | 140X165X64 | 2 x M20+ 2 x M25 | 1 | |
| GW 70 442 NM | 3P+N | 140X165X64 | 2 x M20+ 2 x M25 | 1 | |
| GW 70 443 M | 4P | 140X165X64 | 2 x M20+ 2 x M25 | 1 | |
| Rated current (A): 63 | |||||
| GW 70 437 M | 3P | 215X252X91 | 4 X M32 | 1 | |
| GW 70 437 NM | 3P+N | 215X252X91 | 4 X M32 | 1 | |
| GW 70 438 M | 4P | 215X252X91 | 4 X M32 | 1 | |
| Rated current (A): 80 | |||||
| GW 70 489 M | 3P | 215X252X91 | 4 X M32 | 1 | |
| GW 70 489 NM | 3P+N | 215X252X91 | 4 X M32 | 1 | |
| GW 70 490 M | 4P | 215X252X91 | 4 X M32 | 1 | |
| Rated current (A): 100 | |||||
| GW 70 491 M | 3P | 307X257X121 | 1 | ||
| GW 70 491 NM | 3P+N | 307X257X121 | 1 | ||
| GW 70 492 M | 4P | 307X257X121 | 1 | ||
| Rated current (A): 125 | |||||
| GW 70 493 M | 3P | 307X257X121 | 1 | ||
| GW 70 493 NM | 3P+N | 307X257X121 | 1 | ||
| GW 70 494 M | 4P | 307X257X121 | 1 | ||
| Rated current (A): 160 | |||||
| GW 70 495 M | 3P | 307X257X121 | 1 | ||
| GW 70 495 NM | 3P+N | 307X257X121 | 1 | ||
| GW 70 496 M | 4P | 307X257X121 | 1 | ||
 | Surface-mounted isolator in thermoplastic boxes: the main advantages • TOTAL PROTECTION: These rotary switch isolators come in a thermoplastic box, and offer a degree of protection of IP66/IP67/IP69, thus ensuring that products are fully protected against dust and liquid, even with hot, highpressure water jets, so they can be used in even the most demanding environments. • QUICK ASSEMBLY: The plastic front of 70 RT HP closes with just four quarter-turn captive screws; a simple, innovative system to secure or remove the front much more quickly than any other system available on the market. • VERSATILE AND INNOVATIVE: A host of technical solutions have been introduced with this new range, designed for easy installation: features such as the double metric inputs on the upper and lower sides, the external fixing points for surface mounting and plenty of internal space for cable wiring. |
 | Surface-mounted isolator in metal boxes: the main advantages • ROBUST AND RELIABLE: The metal box versions with protection up to IP66 are made in painted aluminium alloy, offering high levels of performance over time, even in the most critical and heavy-duty conditions. • READY FOR USE: The metal box is pre-equipped with 4 external brackets for surface-mounting, maintaining the original IP rating even after installation. The bottom of all versions up to 80A are pre-drilled, ready to take metric cable glands. • ATEX VERSIONS: The 70 RT HP range with metal box is completed with the addition of surface-mounted rotary isolators in an ATEX version from 16A to 100A, compliant with Directive 94/9/EC (which defines and regulates electrical systems in environments with potentially explosive atmospheres). The products in the range are available for 22D zones – enhancing our ATEX solutions, which include control devices, junction boxes and lighting equipment. |
