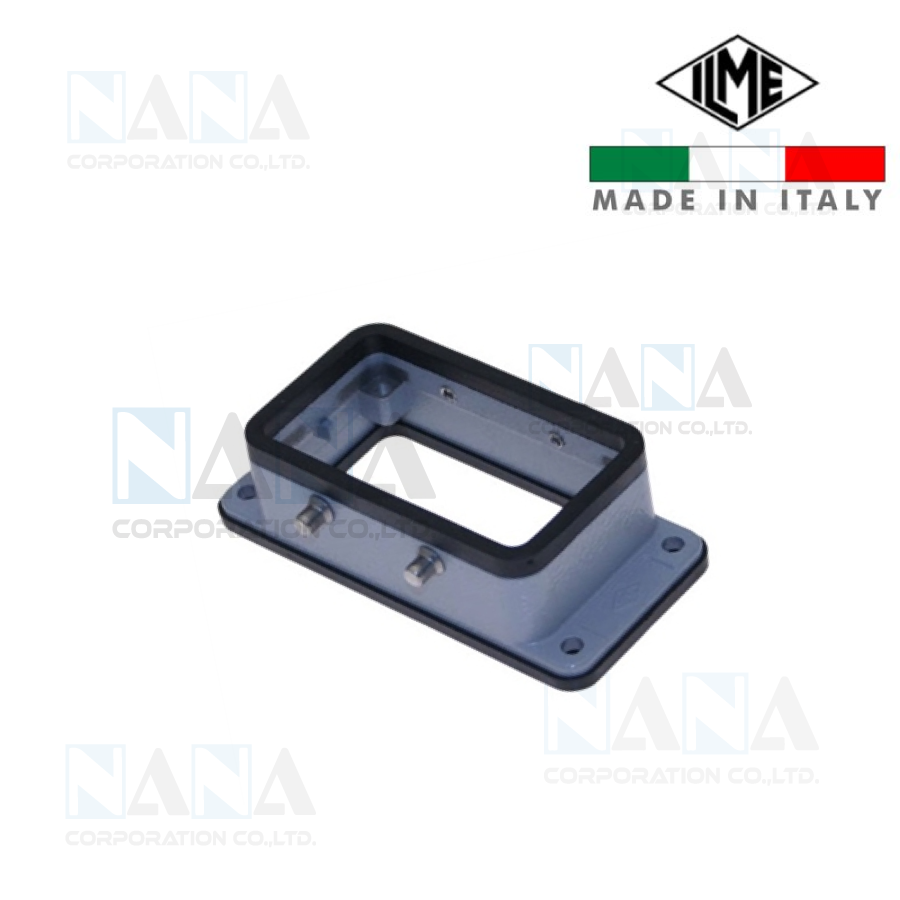

CHI-10C C-Type Bulkhead Mount Housing
Attribute:
Multipole Connector, ILME ILME CHI-10C C-Type bulkhead mount standard housing is size 57.27 and features 4 pegs
Share
Categories : Connectors , Multipole Connector คอนเนคเตอร์เหลี่ยม , Hood & Housing-Multipole Connector ,
Brand : ILME
Share
CHI-10 C-Type Bulkhead Mount Housing
The ILME CHI-10C C-Type bulkhead mount standard housing is size 57.27 and features 4 pegs. The body is die cast aluminum. Insert center distance: 57 x 27 mm. Rated IP 66 when attached and locked down. The CHI-10C is durable with a life expectancy over 500 cycles.
| Specifications | |
| Brand | ILME |
| Body | Die Cast Aluminum |
| Lever | Stainless Steel |
| ILME Series | CH |
| Insert Dimension | 57.27 |
| Enclosure Dimension | 57.27 |
| Housing Type | Standard, Metallic |
| Pegs | 4 |
| Mounting Style | Bulkhead Mount |
| Temperature Range | 40 C to 125 C (-40 F to 257 F) |
| Ingress Protection | IP66 (and IP69 DIN 40050 - 9) |
| Insert Center Distance | 57 x 27 mm. |
| Approvals | C UR US, CCC, GL |
