Cable Gland Shroud
Attribute:

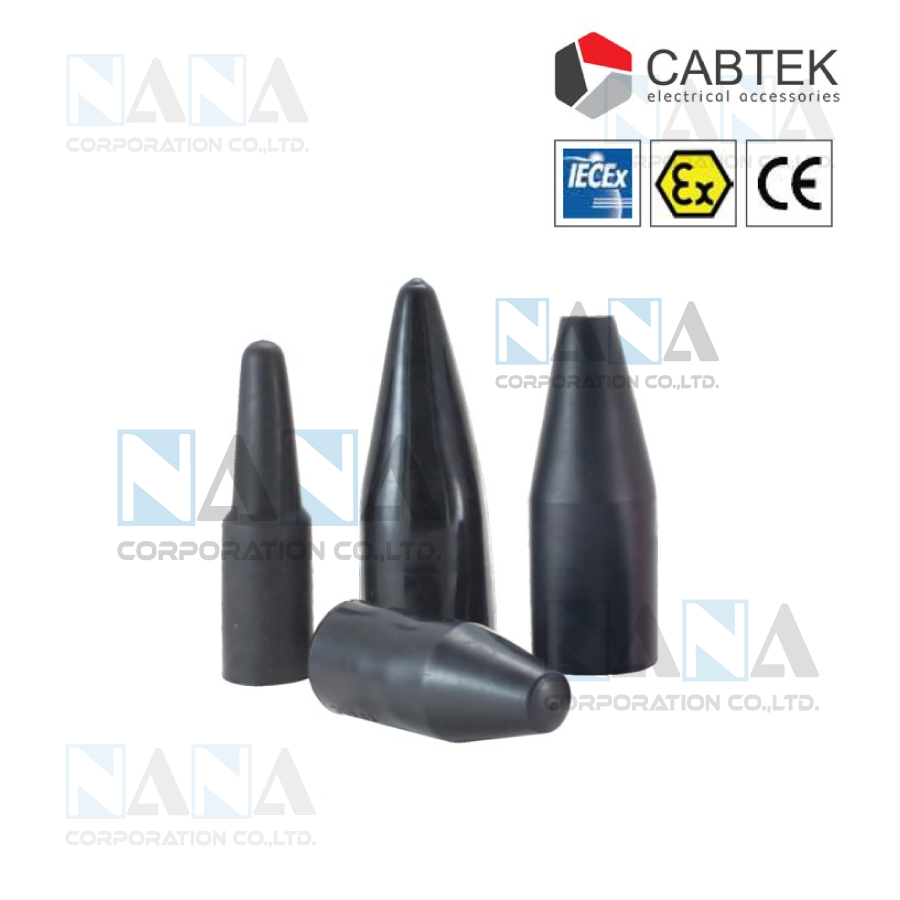

Made from high grade polyvinyl chloride. The shrouds are used to increase the protection against external chemical and environmental agents of cable glands
Share
Categories : Cable gland , Cable gland Accessories ,
Brand : R&R
Share
Cable Gland Shroud
PVC Shroud : Standard PVC is made up of a significant number of halogens which when burnt produce toxic gases including hydrogen chloride (HCL). Hydrogen chloride is extremely dangerous and corrosive, capable of causing serious harm to people and equipment. It can even be compared to mustard gas which is used as a chemical weapon. Standard PVC can produce around 28% HCL emissions if burnt.
The term LSF only indicates that the shroud offers reduced smoke emission fire propagation compared with standard PVC. There is no standard governing the HCL emissions of LSF cagle but it will often produce between 18-220. HCL emissions when burnt which is still extremely hazardous.
The term zero halogen (interchangeable with halogen free) guarantees that if burnt the shroud will produce less than 0.5% HCL (hydrogen chloride) emissions. The standard sheathing material is fairly tough & flexible with resistance to a wide range of oils & chemicals.
Confusion sometimes arises due to the number of different terms in use within the industry for LSZH and the similarity of these terms to LSF. To add to this some manufactures of shrouds that are actually LSZH describe and even print them as LSF.
| SHROUD FOR BW CABLE GLAND | ||||||
| SIZE | PVC CODE | LSF CODE | ID | L | L1 | Thick |
| 20S | CPSB20S | CLSB20S | 23.00 | 35.00 | 25.00 | 1.20 |
| 20L | CPSB20L | CLSB20L | 25.00 | 36.00 | 26.00 | 1.20 |
| 25S | CPSB25S | CLSB25S | 34.50 | 39.00 | 27.00 | 1.20 |
| 25L | CPSB25L | CLSB32S | 34.50 | 39.00 | 27.00 | 1.20 |
| 32S | CPSB32S | CLSB32S | 40.00 | 39.00 | 30.00 | 1.20 |
| 32L | CPSB32L | CLSB32L | 40.00 | 39.00 | 30.00 | 1.25 |
| 40S | CPSB40S | CLSB40S | 46.00 | 40.00 | 50.00 | 1.40 |
| 40L | CPSB40L | CLSB40L | 50.00 | 45.00 | 45.00 | 1.40 |
| 50S | CPSB50S | CLSB50S | 60.00 | 50.00 | 60.00 | 1.40 |
| 50L | CPSB50L | CLSB50L | 64.00 | 50.00 | 70.00 | 1.45 |
| 63S | CPSB63S | CLSB63S | 76.00 | 65.00 | 70.00 | 1.50 |
| 63L | CPSB63L | CLSB63L | 79.00 | 63.00 | 62.00 | 1.50 |
| 75S | CPSB75S | CLSB75S | 85.00 | 70.00 | 63.00 | 1.75 |
| 75L | CPSB75L | CLSB75L | 92.00 | 65.00 | 65.00 | 1.75 |
| 82L | CPSB82L | CLSB82L | 103.00 | 75.00 | 80.00 | 1.75 |
| 90S | CPSB90S | CLSB90S | 120.00 | 75.00 | 95.00 | 1.75 |
| 90L | CPSB90L | CLSB90L | 120.00 | 75.00 | 95.00 | 1.75 |
| SHROUD FOR A2 CABLE GLAND | ||||||
| SIZE | PVC CODE | LSF CODE | ID | L | L1 | Thick |
| 20S | CPSA220S | CLSA220S | 23.00 | 35.00 | 25.00 | 1.50 |
| 20L | CPSA220L | CLSA220L | 27.00 | 35.00 | 25.00 | 1.50 |
| 25S | CPSA225S | CLSA225S | 38.00 | 45.00 | 45.00 | 1.50 |
| 25L | CPSA225L | CLSA225L | 38.00 | 45.00 | 45.00 | 1.50 |
| 32S | CPSA232S | CLSA232S | 46.00 | 40.00 | 50.00 | 1.50 |
| 32L | CPSA232L | CLSA232L | 46.00 | 40.00 | 50.00 | 1.50 |
| 40S | CPSA240S | CLSA240S | 50.00 | 45.00 | 45.00 | 1.50 |
| 40L | CPSA240L | CLSA240L | 50.00 | 45.00 | 45.00 | 1.50 |
| 50S | CPSA250S | CLSA250S | 58.00 | 60.00 | 50.00 | 1.50 |
| 50L | CPSA250L | CLSA250L | 64.00 | 50.00 | 70.00 | 1.50 |
| 63S | CPSA263S | CLSA263S | 68.00 | 65.00 | 55.00 | 1.50 |
| 63L | CPSA263L | CLSA263L | 79.00 | 63.00 | 62.00 | 1.50 |
| 75S | CPSA275S | CLSA275S | 85.00 | 70.00 | 63.00 | 1.50 |
| 75L | CPSA275L | CLSA275L | 95.00 | 65.00 | 65.00 | 1.50 |
| 90L | CPSA290L | CLSA290L | 120.00 | 75.00 | 95.00 | 1.50 |
| 90S | CPSA290S | CLSA290S | 120.00 | 75.00 | 95.00 | 1.50 |
| SHROUD FOR CW CABLE GLAND | ||||||
| SIZE | PVC CODE | LSF CODE | ID | L | L1 | Thick |
| 16.00 | CPSC20S | CLSC20S | 23.00 | 52.00 | 40.00 | 1.20 |
| 20S16 | CPSC20S | CLSC20S | 23.00 | 52.00 | 40.00 | 1.20 |
| 20S | CPSC20S | CLSC20S | 23.00 | 52.00 | 40.00 | 1.20 |
| 20L | CPSC20L | CLSC20L | 27.25 | 52.00 | 40.00 | 1.20 |
| 25S | CPSC25S | CLSC25S | 31.50 | 52.00 | 40.00 | 1.20 |
| 25L | CPSC25L | CLSC25L | 36.00 | 52.00 | 40.00 | 1.20 |
| 32S | CPSC32S | CLSC32S | 42.00 | 52.00 | 40.00 | 1.20 |
| 32L | CPSC32L | CLSC32L | 42.00 | 52.00 | 40.00 | 1.20 |
| 40S | CPSC40S | CLSC40S | 46.00 | 60.00 | 60.00 | 1.40 |
| 40L | CPSC40L | CLSC40L | 51.00 | 65.00 | 65.00 | 1.40 |
| 50S | CPSC50S | CLSC50S | 61.00 | 63.00 | 80.00 | 1.50 |
| 50L | CPSC50L | CLSC50L | 63.00 | 70.00 | 90.00 | 1.50 |
| 63S | CPSC63S | CLSC63S | 73.00 | 75.00 | 80.00 | 1.70 |
| 63L | CPSC63L | CLSC63L | 82.00 | 90.00 | 105.00 | 1.70 |
| 75S | CPSC75S | CLSC75S | 88.00 | 95.00 | 105.00 | 1.80 |
| 75L | CPSC75L | CLSC75L | 95.00 | 105.00 | 1.80 | |
| 90L | CPSC90L | CLSC90L | 120.00 | 75.00 | 95.00 | 1.80 |
| 90S | CPSC90S | CLSC90S | 120.00 | 75.00 | 95.00 | 1.80 |
| SHROUD FOR E1W CABLE GLAND | ||||||
| SIZE | PVC CODE | LSF CODE | ID | L | L1 | Thick |
| 20S | CPSE1W20S | CLSE1W20S | 25.00 | 45.00 | 45.00 | 1.50 |
| 20L | CPSE1W20L | CLSE1W20L | 32.00 | 50.00 | 65.00 | 1.50 |
| 25S | CPSE1W25S | CLSE1W25S | 38.00 | 50.00 | 60.00 | 1.50 |
| 25L | CPSE1W25L | CLSE1W25L | 38.00 | 50.00 | 60.00 | 1.50 |
| 32S | CPSE1W32S | CLSE1W32S | 51.00 | 60.00 | 55.00 | 1.50 |
| 32L | CPSE1W32L | CLSE1W32L | 51.00 | 60.00 | 55.00 | 1.50 |
| 40S | CPSE1W40S | CLSE1W40S | 58.00 | 65.00 | 90.00 | 1.50 |
| 40L | CPSE1W40L | CLSE1W40L | 58.00 | 65.00 | 90.00 | 1.50 |
| 50S | CPSE1W50S | CLSE1W50S | 63.00 | 85.00 | 95.00 | 1.50 |
| 50L | CPSE1W50L | CLSE1W50L | 73.00 | 70.00 | 100.00 | 1.50 |
| 63S | CPSE1W63S | CLSE1W63S | 82.00 | 95.00 | 105.00 | 1.50 |
| 63L | CPSE1W63L | CLSE1W63L | 88.00 | 95.00 | 105.00 | 1.50 |
| 75S | CPSE1W75S | CLSE1W75S | 92.00 | 105.00 | 115.00 | 1.50 |
| 75L | CPSE1W75L | CLSE1W75L | 106.00 | 100.00 | 100.00 | 1.50 |
| 90L | CPSE1W90L | CLSE1W90L | 120.00 | 75.00 | 95.00 | 1.50 |
| 90S | CPSE1W90S | CLSE1W90S | 120.00 | 75.00 | 95.00 | 1.50 |
