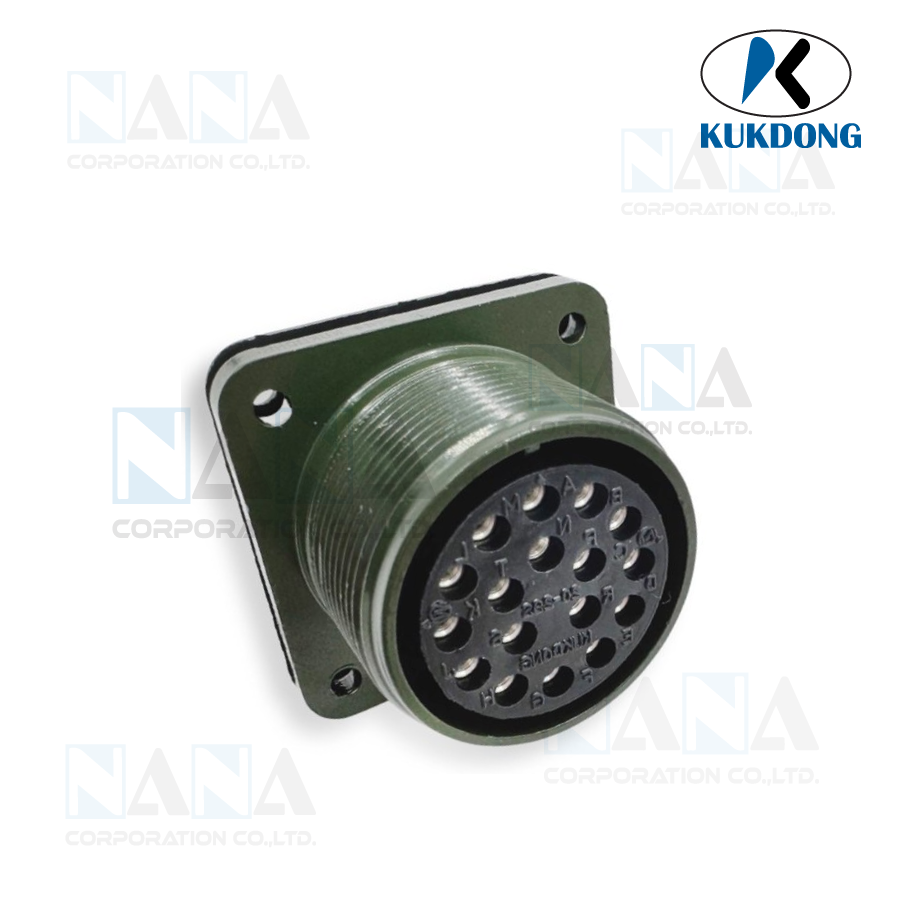

KD3102A20-29S, Recept/Female
Attribute:
Circular Connector คอนเนคเตอร์แบบกลม KUKDONG , KD3102 Class A, Box mounting receptacle
Share
Categories : Connectors , Circular Military Connector ,
Brand : KUKDONG
Share
KD3102 Circular Military Connectors, KD3102 Class A
MS3102 Box mounting receptacle
KD 3102 : Receptacle intended for mounting on shielding boxes and equipment cases. They have no fittings and are for use with open wiring. They are nonenvironmental and are intended for use on boxes where environmental seal is achieved by some other means.
| Shell size | A ±0.79 | B ±0.13 | C +0.25 -0.13 | D +0.38 | E 4.78 | F Mounting Hole | J THD-2A | L max | M +0.79 | N | |
| max | min | ||||||||||
| 10SL | 25.40 | 18.26 | 3.05 | 11.38 | 15.90 | 20.62 | 5/8-24UNEF | 30.25 | 14.27 | 3.96 | 1.57 |
| 12s | 27.79 | 20.62 | 3.05 | 14.15 | 17.50 | 20.62 | 3/4-20UNEF | 30.25 | 14.27 | 3.96 | 1.57 |
| 12 | 27.79 | 20.62 | 3.05 | 14.15 | 17.50 | 20.62 | 3/4-20UNEF | 43.51 | 19.05 | 3.96 | 1.57 |
| 14s | 30.18 | 23.01 | 3.05 | 17.32 | 19.10 | 28.23 | 7/8-20UNEF | 30.25 | 14.27 | 3.96 | 1.57 |
| 14 | 30.18 | 23.01 | 3.05 | 17.32 | 19.10 | 28.83 | 7/8-20UNEF | 43.51 | 19.05 | 3.96 | 1.57 |
| 16s | 32.54 | 24.61 | 3.05 | 20.50 | 22.20 | 26.97 | 1 -20UNEF | 30.25 | 14.27 | 3.96 | 1.57 |
| 16 | 32.54 | 24.61 | 3.05 | 20.50 | 22.40 | 26.96 | 1 -20UNEF | 44.45 | 19.05 | 3.96 | 1.57 |
| 18 | 34.93 | 26.97 | 3.05 | 23.67 | 25.40 | 30.18 | 1 1/8-18UNEF | 49.23 | 19.05 | 5.16 | 2.39 |
| 20 | 38.10 | 29.36 | 3.05 | 26.87 | 28.60 | 33.32 | 1 1/4-18UNEF | 49.23 | 19.05 | 5.16 | 2.39 |
| 22 | 41.28 | 31.75 | 3.05 | 30.02 | 31.80 | 36.53 | 1 3/8-UNEF | 49.23 | 19.05 | 5.16 | 2.39 |
| 24 | 44.45 | 34.96 | 3.73 | 33.20 | 34.90 | 39.97 | 1 1/2-18UNEF | 49.23 | 20.62 | 5.16 | 2.39 |
| 28 | 50.80 | 39.67 | 3.75 | 38.76 | 41.30 | 46.02 | 1 3/4-18UNEF | 49.31 | 20.62 | 5.16 | 3.18 |
| 32 | 57.15 | 44.45 | 3.73 | 45.11 | 48.40 | 52.37 | 2 -18NUS | 49.23 | 22.23 | 9.12 | 3.18 |
| 36 | 63.50 | 49.23 | 4.39 | 50.67 | 54.00 | 58.72 | 2 1/4-16UN | 49.23 | 22.23 | 9.12 | 3.18 |
| 40 | 69.85 | 55.58 | 4.39 | 57.02 | 64.31 | 65.07 | 2 1/2-16UN | 49.23 | 22.23 | 9.12 | 3.18 |
