DES Q-Entry system for pre-terminated cables
Attribute:
DES Q cable entry system consists of a splittable frame designed to accommodate small (SPP), multiple (X) or large (SPG) inserts for cables in the same frame.
Share
Categories : Cable gland , Cable Entry System ,
Share
DES Q

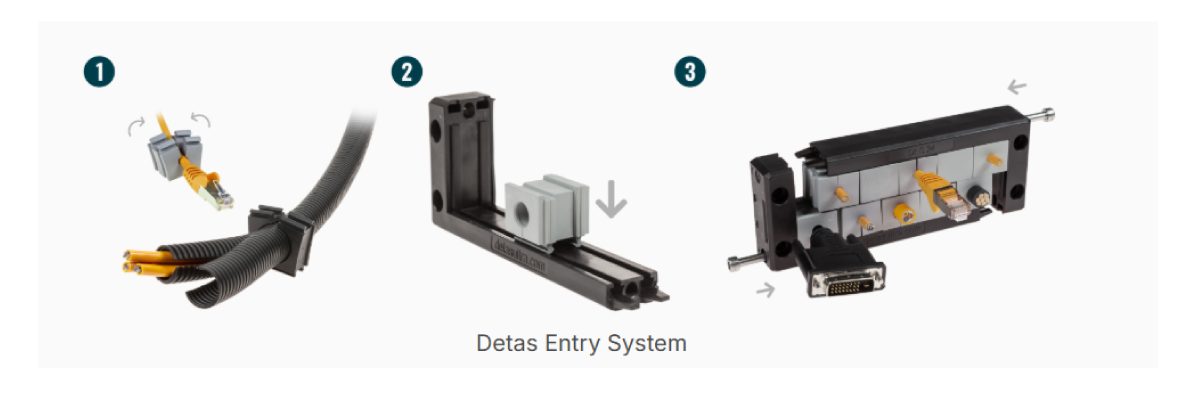

The DES Q cable entry system consists of a splittable frame designed to accommodate small (SPP), multiple (X) or large (SPG) inserts for cables in the same frame. Future cable size changes can be easily accommodated.
Thanks to the robust construction, the DES Q is a long lasting product.
Upon request, set of 4 mounting screws in AISI304 with Black Dacromet finishing (code: 1731991020).
Advantages
- Frame screws in AISI304 stainless steel
- Up to IP66
- Strein relief according to EN 62444
- construction IK10
- Integrated gasked
Features
- Material: PP+GF
- Flammability:self-extinguishing acc. to UL94-V0
- Temperature: -40ﾰC... +155ﾰC (static)
- Features: halogen and silicone free
