Silicone Ducting - EISD

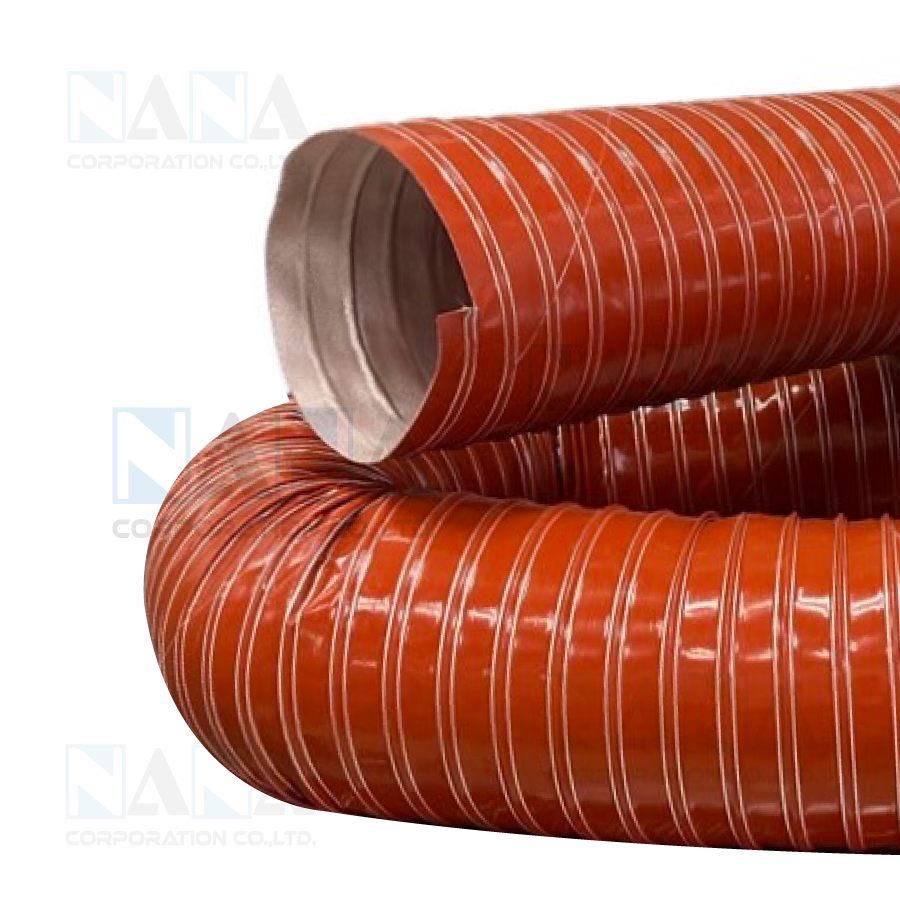

High Temperature Silicone Ducting Hose
Common Applications
For hot and cold air , chemicals and industrial gas transmission. For the printers and blowers. For Ship building the manufacture of machinery and engines. Chemical plants, plastics processing it used as a hot air hose for grain according with the hot gas and suction and the transport hot environment. Aircraft, Automotive, Brake Ducting, Heater Hose, Dry Cleaning, Dryer Hose, Exhaust Systems, Heater ,Glass Drying, High Temperature Applications, Plastics Industry, Transmission Cooling, Vehicle ExhaustSystems.
Constructions
Hose materials: Silicone-coated glass fabric double-layer.
Helix: Spring steel wire with external filament fiberglass cord.
Features
- Resistance to high temperature range
- Double-layer of silicone coated glass fiber fabric
- Extremely flexible and light weight
- Small bending radius
- Good chemical resistance
- Smooth interior
- Wear vulcanized wall
- 70° C to +300° C (short time to 350° C)
Standard length: 4 meters
| Part No. | ID (mm) | OD (mm) | Bending Radius (mm) | Working Pressure (bar) | Weight (kg/meter) |
| EISD0019 | 19 | 22 | 22 | 3.000 | 0.110 |
| EISD0022 | 22 | 25 | 25 | 3.000 | 0.170 |
| EISD0025 | 25 | 30 | 30 | 2.800 | 0.190 |
| EISD0032 | 32 | 36 | 36 | 2.700 | 0.200 |
| EISD0038 | 38 | 43 | 43 | 2.600 | 0.225 |
| EISD0044 | 44 | 49 | 49 | 2.600 | 0.275 |
| EISD0051 | 51 | 56 | 56 | 2.600 | 0.300 |
| EISD0057 | 57 | 62 | 62 | 2.500 | 0.335 |
| EISD0063 | 63 | 68 | 68 | 2.400 | 0.363 |
| EISD0070 | 70 | 75 | 75 | 2.100 | 0.410 |
| EISD0076 | 76 | 81 | 81 | 2.100 | 0.425 |
| EISD0080 | 80 | 85 | 85 | 2.100 | 0.450 |
| EISD0083 | 83 | 88 | 88 | 2.100 | 0.483 |
| EISD0089 | 89 | 94 | 94 | 2.000 | 0.500 |
| EISD0095 | 95 | 100 | 100 | 1.900 | 0.525 |
| EISD0102 | 102 | 107 | 107 | 1.900 | 0.625 |
| EISD0108 | 108 | 114 | 114 | 1.800 | 0.635 |
| EISD0114 | 114 | 120 | 120 | 1.500 | 0.675 |
| EISD0121 | 121 | 127 | 127 | 1.500 | 0.750 |
| EISD0127 | 127 | 133 | 133 | 1.400 | 0.885 |
| EISD0140 | 140 | 146 | 146 | 1.300 | 1.025 |
| EISD0152 | 152 | 158 | 158 | 1.200 | 1.275 |
| EISD0178 | 178 | 184 | 184 | 1.000 | 1.615 |
| EISD0203 | 203 | 209 | 209 | 0.700 | 1.900 |
