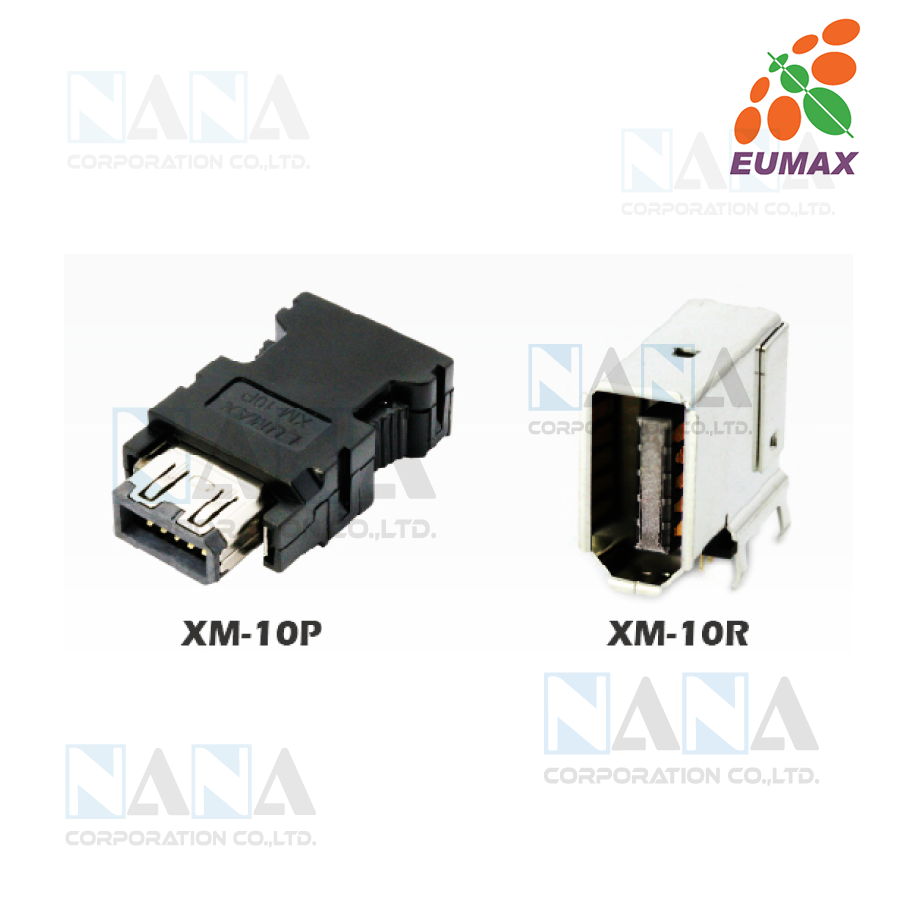

EUMAX 10 Poles connector fully compatible with SCR connector,Supply plug kit (XM-10P) and R/A PCB receptacle
Share
Categories : Connectors , Servo Motor Connector ,
Brand : EUMAX
Share
| Technical Data | ||
| Brand | EUMAX | |
| P/N | XM-10P | XM-10R |
| Equivalent P/N | 36210-0100PL + 36310-3200-008 (3M) 54599-1019 (MOLEX) | 36110-2220PE (3M) |
| Rated Current / Voltage | 2A/125 vac Max. | |
| Insulation Resistance | >500M @ 500VDC | |
| Withstanding Voltage | 500VRMS for 1 minute | |
| Working Temperature | -40 °C to +85 °C | |
| Soldering Temperature | 360 °C max for 10 sec. max | |
| Contact Material | Gold-plated Copper Alloy | |
| Housing Material | PC+GF UL 94V-0 | |
| Metal Shell Material | Nickle-plated Copper Alloy | Tin-Plated steel |
| Applicable Wires | 18-28AWG | PCB Mounting |
