LNE-DPJ End Style Straight Connector
Attribute:
โลหะผสมสังกะสีหรือชุบโครเมียมที่หนาขึ้น มีความแข็งแรงสูงกว่าขั้วต่อท่อโลหะทั่วไป การออกแบบปลอกหุ้มทำให้เชื่อมต่อท่อได้แน่นทนแรงดึงสูง ประกอบง่าย โครงสร้างกะทัดรัด
Share
Categories : Flexible Conduit ท่อเฟล็กซ์ท่อร้อยสายไฟ , Accessories For Flexible Conduit ,
Share

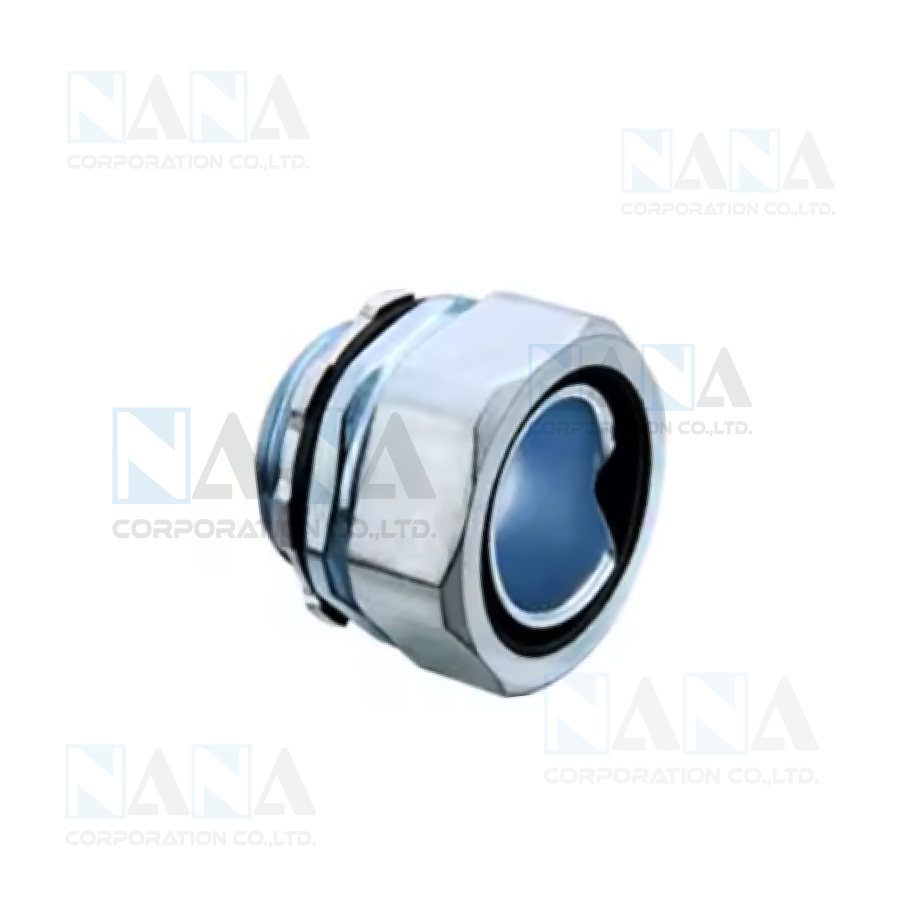

LNE-DPJ End Style Straight Connector
Product material : Location A,C and F are made of high-quality thickened zinc alloy,B,E are made of chemigums and D is made of iron sheet.
Specification of thread : Metric
Color : Metallic color (Silver white)
Temperature : -40 C - 100 C, instantaneously can be +120 C
Protection Classification : IP65
Property : Thickened zinc alloy or chromium plated; nice looking, compact structure and high strength. Flexible conduit Ferrule design make conduit connection tightly, easy assembly ,and strong pull resistance. Water resistant, dust resistant, inactive with salts, acid and alkali resistance, alcohols, oils and greases as well as general solvent.
| Part No. | Metric | Thead O.D. (mm.)D1 | Thead Length (mm)L1 | Connector Length (mm) L1+L2 |
| LNE-DPJ-6-M14 | M14X1.5 | 14 | 7 | 16 |
| LNE-DPJ-8-M16 | M16X1.5 | 16 | 8 | 16 |
| LNE-DPJ-10-M16 | M16X1.5 | 16 | 8 | 17 |
| LNE-DPJ-13-M20 | M20X1.5 | 20 | 10 | 18 |
| LNE-DPJ-16-M24 | M20X1.5 | 20 | 10 | 23 |
| LNE-DPJ-20-M27 | M27X2.0 | 27 | 12 | 22 |
| LNE-DPJ-25-M33 | M33X2.0 | 33 | 12 | 28 |
| LNE-DPJ-32-M42 | M42X2.0 | 42 | 14 | 30 |
| LNE-DPJ-38-M48 | M48X2.0 | 48 | 14 | 32 |
| LNE-DPJ-51-M60 | M60X2.0 | 60 | 15 | 34 |
| LNE-DPJ-64-M76 | M76X2.0 | 76 | 20 | 38 |
| LNE-DPJ-75-M88 | M88X2.0 | 88 | 22 | 46 |
| LNE-DPJ-100-M114 | M114X2.0 | 114 | 28 | 50 |
| LNE-DPJ-125-M140 | M140X2.0 | 140 | 29 | - |
| LNE-DPJ-150-M164 | M164X2.0 | 164 | 29 | - |
| Part No. | PG System | Thead O.D. (mm.)D1 | Thead Length (mm)L1 | Connector Length (mm) L1+L2 |
| LNE-DPJ-6-PG7 | PG7 | 12.5 | 8 | 16 |
| LNE-DPJ-8-PG9 | PG9 | 15.2 | 8 | 16 |
| LNE-DPJ-10-PG9 | PG9 | 15.2 | 8 | 17 |
| LNE-DPJ-13-PG11 | PG11 | 18.6 | 8 | 18 |
| LNE-DPJ-16-PG13.5 | PG13.5 | 20.4 | 11 | 23 |
| LNE-DPJ-20-PG21 | PG21 | 28.3 | 14 | 22 |
| LNE-DPJ-25-PG29 | PG29 | 37.0 | 15 | 28 |
| LNE-DPJ-32-PG29 | PG29 | 37.0 | 15 | 30 |
| LNE-DPJ-38-PG36 | PG36 | 47.0 | 16 | 32 |
| LNE-DPJ-51-PG48 | PG48 | 59.3 | 18 | 34 |
| Part No. | G System | Thead O.D. (mm.)D1 | Thead Length (mm)L1 | Connector Length (mm) L1+L2 |
| LNE-DPJ-6-G1/4 | G1/4" | 13.2 | 8 | 16 |
| LNE-DPJ-8-G3/8 | G3/8" | 16.5 | 8 | 16 |
| LNE-DPJ-10-G3/8 | G3/8" | 16.5 | 8 | 17 |
| LNE-DPJ-13-G3/8 | G3/8" | 16.5 | 8 | 18 |
| LNE-DPJ-16-G1/2 | G1/2" | 21.3 | 11 | 23 |
| LNE-DPJ-20-G3/4 | G3/4" | 26.6 | 14 | 22 |
| LNE-DPJ-25-G1 | G1" | 33.4 | 15 | 28 |
| LNE-DPJ-32-G1-1/4 | G1-1/4" | 42.1 | 15 | 30 |
| LNE-DPJ-38-G1-1/2 | G1-1/2" | 47.8 | 16 | 32 |
| LNE-DPJ-51-G2 | G2" | 59.6 | 18 | 34 |
| LNE-DPJ-64-G2-1/2 | G2-1/2" | 75.1 | 22 | 38 |
| LNE-DPJ-75-G3 | G3" | 87.8 | 22 | 46 |
| LNE-DPJ-100-G4 | G4" | 113 | 24 | 50 |
| LNE-DPJ-125-G5 | G5" | - | - | - |
| LNE-DPJ-150-G6 | G6" | - | - | - |
| Part No. | NPT System | Thead O.D. (mm.)D1 | Thead Length (mm)L1 | Connector Length (mm) L1+L2 |
| LNE-DPJ-6-NPT1/4 | NPT1/4" | 13.2 | 8 | 16 |
| LNE-DPJ-8-NPT3/8 | NPT3/8" | 16.5 | 8 | 16 |
| LNE-DPJ-10-NPT3/8 | NPT3/8" | 16.5 | 8 | 17 |
| LNE-DPJ-13-NPT3/8 | NPT3/8" | 16.5 | 8 | 18 |
| LNE-DPJ-16-NPT1/2 | NPT1/2" | 21.3 | 11 | 23 |
| LNE-DPJ-20-NPT3/4 | NPT3/4" | 26.6 | 14 | 22 |
| LNE-DPJ-25-NPT1 | NPT1" | 33.4 | 15 | 28 |
| LNE-DPJ-32-NPT1-1/4 | NPT1-1/4" | 42.1 | 15 | 30 |
| LNE-DPJ-38-NPT1-1/2 | NPT1-1/2" | 47.8 | 16 | 32 |
| LNE-DPJ-51-NPT2 | NPT2" | 59.6 | 18 | 34 |
| LNE-DPJ-64-NPT2-1/2 | NPT2-1/2" | 75.1 | 22 | 38 |
| LNE-DPJ-75-NPT3 | NPT3" | 87.8 | 22 | 46 |
| LNE-DPJ-100-NPT4 | NPT4" | 113 | 24 | 50 |
| LNE-DPJ-125-NPT5 | NPT5" | - | - | - |
| LNE-DPJ-150-NPT6 | NPT6" | - | - | - |
