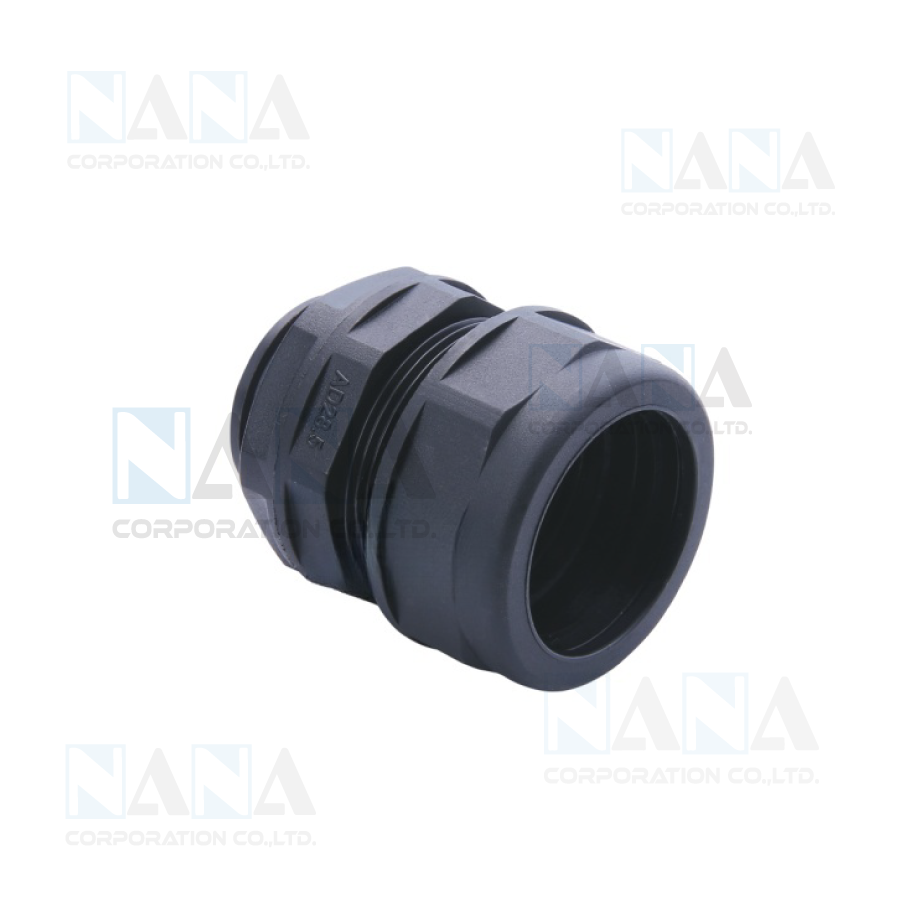

LNE-SM-F-PG,G Waterproof Connector For Flexible Conduit
Attribute:
Fitting, คอนเนคเตอร์สำหรับท่อเฟล็กซ์, PG,G thread, ติดตั้งใช้งานง่ายด้วยแคลมป์ขนาดใหญ่ ทนต่อแรงดึง และกันน้ำ กันฝุ่น เกลือทน กรดและด่าง แอลกอฮอล์ น้ำมัน จารบี
Share
Categories : Flexible Conduit ท่อเฟล็กซ์ท่อร้อยสายไฟ , Accessories For Flexible Conduit ,
Share
LNE-SM-F-PG,G Waterproof Connector For Flexible Conduit
Product material: A, B, E is made of nylon, D ( POM). C nitrile rubber.
Working temperature: -40 ~ +100, instantaneously can be +120 .
Specification of thread:PG, G
Color: Black,grey,Other colors are customizable
Certification: RoHS
Protection grade: IP65
Property: with design of clamping ring and the rubber seal ,tighten by sealing nut, can assembly fast & easy with large clamp range ,
tensile resistance ,and waterproof, dustproof,resistant salt, acid and alkali , alcohol, oil, grease and general solvent
How to use: LNE-SM-F Connector is matching product for non-metallic conduit , can entry equipment cabinet directly,
or can connect with electric device hole which have corresponding female thread .
another side with respective size conduit by tighting up the sealing nut
| NO. | Flexible Conduit | Dimension | AG Outer | AG Inner | GL(mm.) | H | Packaging Unit |
| LNE-SM-F-PG7-10.0B | AD10.0 | PG7 | 12.5 | 7 | 10 | 26 | 100 |
| LNE-SM-F-PG9-13.0B | AD13.0 | PG9 | 15.2 | 10 | 10 | 26 | 100 |
| LNE-SM-F-PG11-15.8B | AD15.8 | PG11 | 18.6 | 12 | 10 | 26 | 100 |
| LNE-SM-F-PG13.5-18.5B | AD18.5 | PG13.5 | 20.4 | 14.5 | 10 | 27 | 50 |
| LNE-SM-F-PG16-21.2B | AD21.2 | PG16 | 22.5 | 15 | 10 | 27 | 50 |
| LNE-SM-F-PG21-28.5B | AD28.5 | PG21 | 28.3 | 23 | 14 | 34 | 50 |
| LNE-SM-F-PG29-34.5B | AD34.5 | PG29 | 37 | 29 | 14 | 34 | 20 |
| LNE-SM-F-PG36-42.5B | AD42.5 | PG36 | 47 | 36 | 14 | 44 | 10 |
| LNE-SM-F-PG48-54.5B | AD54.5 | PG48 | 59.3 | 48 | 15 | 50 | 10 |
| NO. | Flexible Conduit | Dimension | AG Outer | AG Inner | GL(mm.) | H | Packaging Unit |
| LNE-SM-F-G1/2-21.2B | AD21.2 | G 1/2" | 20.4 | 15 | 10 | 27 | 50 |
| LNE-SM-F-G1/2-25B | AD25.0 | G1/2" | 20.4 | 15 | 15 | 35 | 50 |
| LNE-SM-F-G3/4-28.5B | AD28.5 | G 3/4" | 26 | 20 | 14 | 34 | 50 |
| LNE-SM-F-G1-34.5B | AD34.5 | G 1" | 33 | 26 | 14 | 34 | 20 |
