LNE-PA Standard PA Nylon Flexible Conduit

Name: LNE-PA Standard PA Nylon Flexible Conduit
SKU: LNE-PA Standard PA Nylon
Availability: InStock

Attribute:

ท่อเฟล็กซ์ ท่อร้อยสายไฟ PA6 Nylon, Polyamide คุณภาพสูง ทนอุณหภูมิ 40℃~+100℃ สำหรับงานทั่วไปและอุตสาหกรรมหุ่นยนต์ ระบบงานไฟฟ้าต่างๆ

Categories : Flexible Conduit ท่อเฟล็กซ์ท่อร้อยสายไฟ , Plastic Flexible Conduit ,

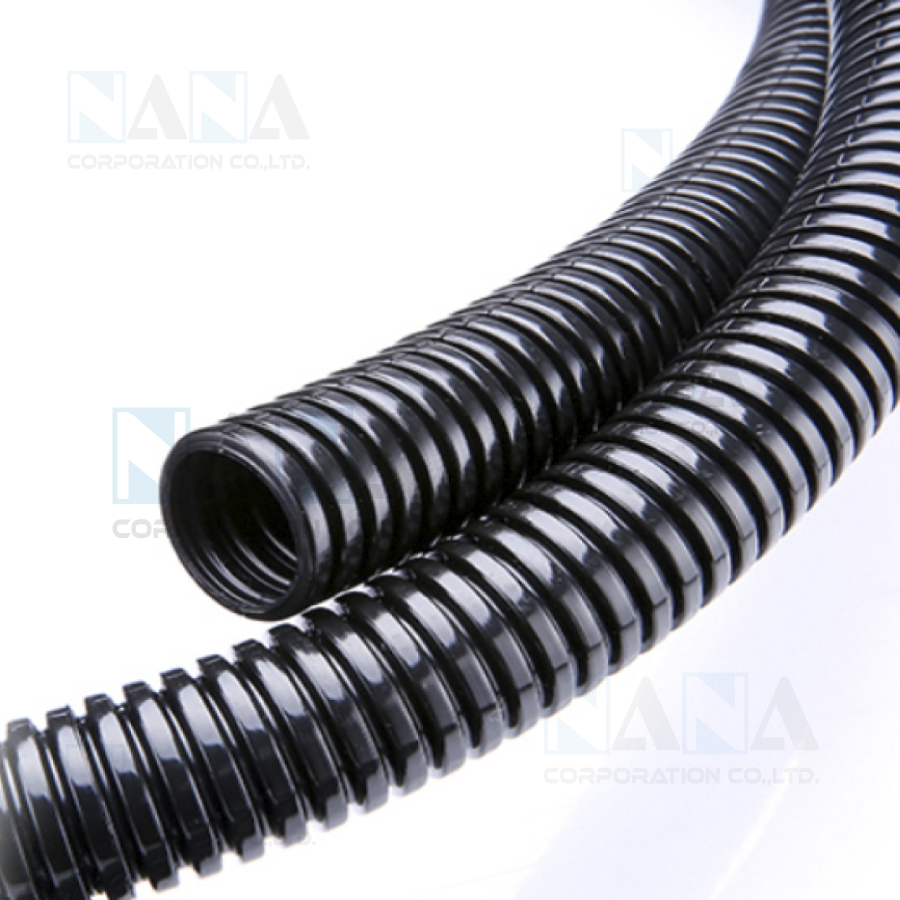

Standard PA Nylon Flexible Conduit LNE-PA

Product material: PA6 nylon,polyamide

Working temperature:-40~+100, instantaneously can be +140.

Certification: RoHS, CE, Product Quanlity Certificate of Railway Ministry , -40 Low Temperature Text Report

Structure: corrugated both inner & outer

Flame Retardant Rating: FV-0

Color: Black. Other colors are customizable upon requirements（split available).

Property: Well flexibility, distortion-resistant, good bending performance ,strong bearing capacity; resistance against acid, lubricating oil, cooling fluid ,glossy surface ,friction resistance Bearing capacity: Non-cracking or deformation at feet pressure,recover quickly without damage.

Applications : Widely applied in the industries like Robots & automation,new energy automobile,aviation,train & metro,railway traffic equipment,marine vessel,electrical power generation,chemical industry,mechanical arms & equipment,illuminating equipment and electrical insulating protection,etc. Adaptive for both dynamic & static environment,especially with requirement of flame retardant.

NO.	Flexible Conduit	Diameter (mm.)	Radius (mm.)	Packaging Unit
LNE-PA-7.0	AD 7.0	4.5x7.0	16	200
LNE-PA-10.0	AD 10.0 1/4"	6.5x10.0	16	100
LNE-PA-11.6	AD 11.6	8.0x11.6	16	100
LNE-PA-13.0	AD 13.0 5/16"	10.0x13.0	20	100
LNE-PA-15.8	AD 15.8 3/8"	12.0x15.8	30	100
LNE-PA-18.5	AD 18.5	14.3x18.5	40	100
LNE-PA-21.2	AD 21.2 1/2"	17.0x21.2	45	100
LNE-PA-25.0	AD 25.0	20.0x25.0	45	50
LNE-PA-28.5	AD 28.5 3/4"	23.0x28.5	50	50
LNE-PA-32.0	AD 32.0	26.0x32.0	55	50
LNE-PA-34.5	AD 34.5 1"	29.0x34.5	60	50
LNE-PA-42.5	AD 42.5 1 1/4"	36.0x42.5	70	50
LNE-PA-54.5	AD 54.5 2"	48.0x54.5	90	25
LNE-PA-74.0	AD 74.0 2 1/2"	63.0x74.0	130	20
LNE-PA-88.0	AD 88.0 3"	76.0x88.0	170	20
LNE-PA-108.0	AD 108.0 4"	94.0x108.0	225	20

Flexible Conduit ท่อเฟล็กซ์ ท่อร้อยสายไฟพลาสติก ท่อพลาสติกร้อยสายไฟ ท่อเฟล็ก PA Nylon LNE-PA Standard PA Nylon Flexible Conduit ท่อร้อยสายไฟราคาส่ง Leinuoer ท่อเฟล็กซ์Leinuoer ท่อร้อยสาย เฟล็กซ์

LNE-PA Standard PA Nylon Flexible Conduit

Attribute:

Related Product

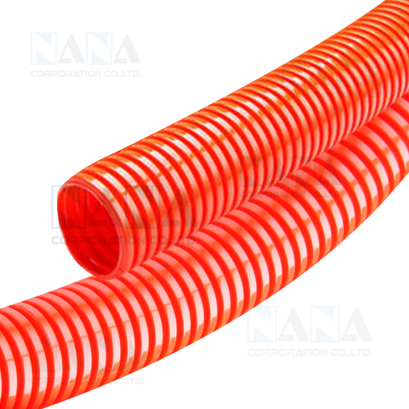

LNE-PA-Z Orange Flame Retardant PA Nylon Flexible Conduit
