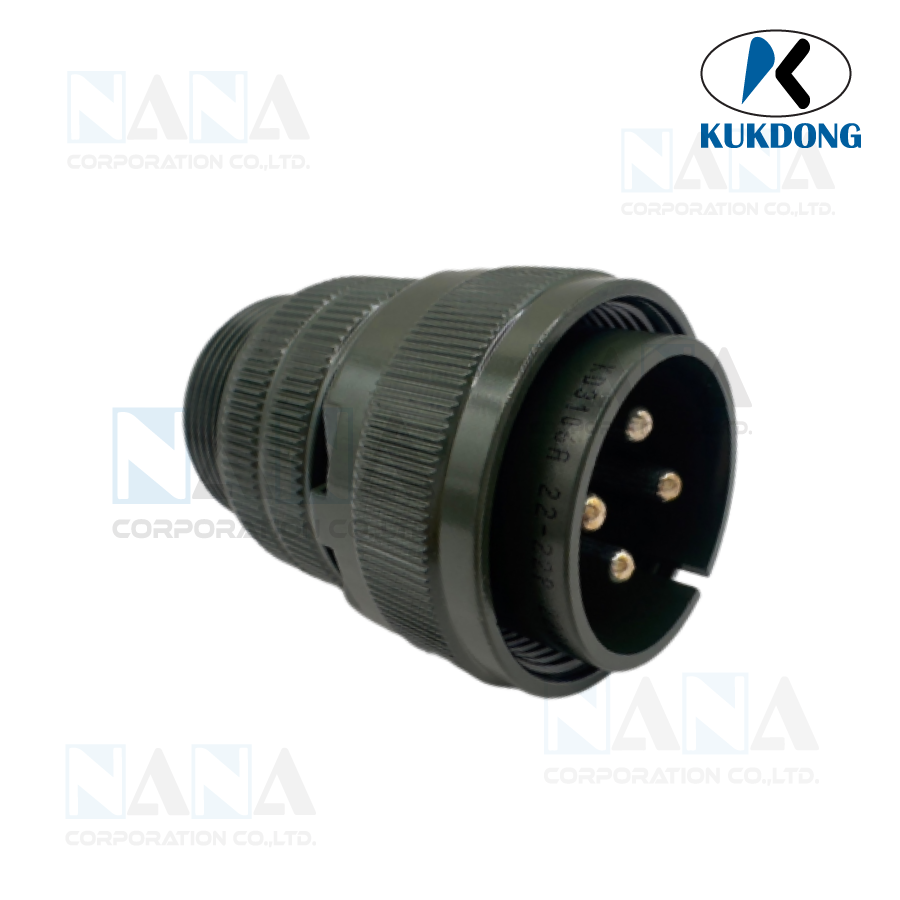

KD3106A22-22P, Plug/Male,13A
Attribute:
คอนเนคเตอร์แบบกลม KUKDONG Circular Connector, KD3106 Class A Wall mounting receptacle, good ranges of both military and general industrial applications
Share
Categories : Connectors , Circular Military Connector ,
Brand : KUKDONG
Share
KD3106 Circular Military Connectors, KD3106 Class A
MS3106 Straight plug
KD MIL - DTL - 5015 series Connectors were designed for the connection of electric and electronic device and KD connectors are used in wide ranges of both military and general industrial applications. With advantages of high quality, intermatability, reliability and low price, KF5015 connectors are designed, manufactured and tested to MIL - DTL - 5015, the Military Detailed Specificati.
| Shell size | A max | D -0.38 | E min | F ±0.13 | J THD-2B | K THD-2A | L max |
| 10SL | 24.61 | 11.33 | 10.20 | 13.49 | 5/8-24UNEF | 5/8-24UNEF | 38.89 |
| 12s | 26.97 | 14.10 | 11.43 | 13.49 | 3/4-20UNEF | 5/8-24UNEF | 42.88 |
| 12 | 26.39 | 14.10 | 11.43 | 13.49 | 3/4-20UNEF | 5/8-24UNEF | 52.37 |
| 14s | 29.36 | 17.15 | 13.36 | 13.49 | 7/8-20UNEF | 3/4-20UNEF | 42.88 |
| 14 | 29.36 | 17.15 | 23.36 | 18.26 | 7/8-20UNEF | 3/4-20UNEF | 52.37 |
| 16s | 31.75 | 20.45 | 16.54 | 13.49 | 1-20UNEF | 7/8-20UNEF | 42.88 |
| 16 | 31.75 | 20.45 | 16.54 | 18.26 | 1-20UNEF | 7/8-20UNEF | 52.37 |
| 18 | 34.14 | 23.62 | 19.71 | 18.26 | 1 1/8-18UNEF | 1-20UNEF | 52.37 |
| 20 | 37.31 | 26.67 | 23.67 | 18.26 | 1 1/4-18UNEF | 1 3/16-18UNEF | 55.58 |
| 22 | 40.49 | 29.85 | 26.06 | 18.26 | 1 3/8-18UNEF | 1 3/16-18UNEF | 55.58 |
| 24 | 43.66 | 33.02 | 29.42 | 18.26 | 1 1/2-18UNEF | 1 7/16-18UNEF | 58.72 |
| 28 | 50.01 | 38.61 | 34.80 | 18.26 | 1 3/4-18UNS | 1 7/16-18UNEF | 58.72 |
| 32 | 56.36 | 44.96 | 41.15 | 18.26 | 2 -18UNS | 1 3/4-18UNS | 61.93 |
| 36 | 56.36 | 44.96 | 41.15 | 18.26 | 2 1/4-16UN | 2 -18UNS | 61.93 |
| 40 | 69.06 | 50.64 | 52.25 | 18.26 | 2 1/2-16UN | 2 1/4-18UN | 61.93 |
