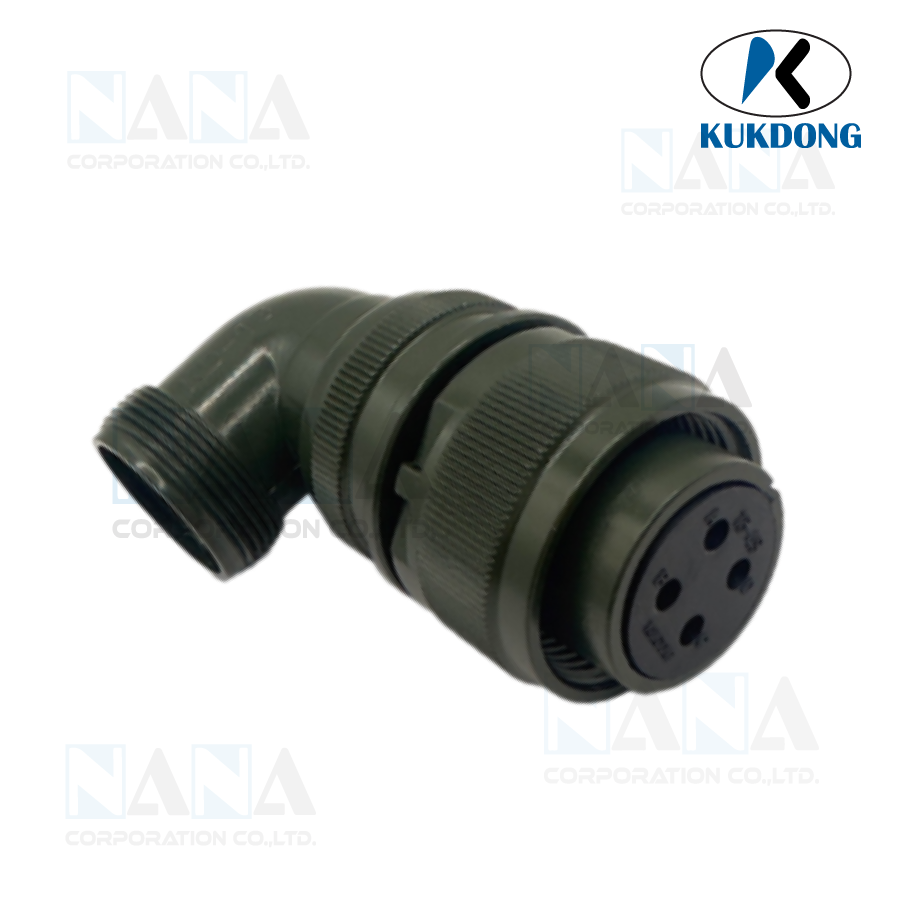

KD3108A18-4S, 90°Angle, Plug/Female
Attribute:
คอนเนคเตอร์แบบกลม KUKDONG Circular Connector, KD3108 90° Angle plug, good ranges of both military and general industrial applications
Share
Categories : Connectors , Circular Military Connector ,
Brand : KUKDONG
Share
KD3108 Circular Military Connectors, KD3108 Class A
MS3108 Class A 90° Angle plug
KD MIL - DTL - 5015 series Connectors were designed for the connection of electric and electronic device and KD connectors are used in wide ranges of both military and general industrial applications. With advantages of high quality, intermatability, reliability and low price.
| Shell Size | A max | D -0.38 | E min | F ±0.13 | J THD-2B | K THD-2A | L max | M max |
| 10SL | 24.61 | 11.33 | 10.20 | 13.49 | 5/8-24UNEF | 5/8-24UNEF | 46.02 | 25.40 |
| 12s | 26.97 | 14.10 | 11.43 | 13.49 | 3/4-20UNEF | 5/8-24UNEF | 50.80 | 26.97 |
| 12 | 26.97 | 14.10 | 11.43 | 18.26 | 3/4-20UNEF | 5/8-24UNEF | 57.15 | 26.97 |
| 14s | 29.36 | 17.15 | 13.36 | 13.49 | 7/8-20UNEF | 3/4-20UNEF | 53.98 | 28.58 |
| 14 | 29.36 | 17.15 | 23.36 | 18.26 | 7/8-20UNEF | 3/4-20UNEF | 58.72 | 28.58 |
| 16s | 31.75 | 20.45 | 16.54 | 13.49 | 1 -20UNEF | 7/8-20UNEF | 60.33 | 30.18 |
| 16 | 31.75 | 20.45 | 16.54 | 18.26 | 1 -20UNEF | 7/8-20UNEF | 65.07 | 30.18 |
| 18 | 34.14 | 23.62 | 19.71 | 18.26 | 1 1/8-18UNEF | 1 -20UNEF | 68.28 | 33.32 |
| 20 | 37.31 | 26.67 | 23.67 | 18.26 | 1 1/4-18UNEF | 1 3/16-18UNEF | 76.99 | 34.96 |
| 22 | 40.49 | 29.85 | 26.06 | 18.26 | 1 3/8-18UNEF | 1 3/16-18UNEF | 76.99 | 34.93 |
| 24 | 42.66 | 33.02 | 29.24 | 18.26 | 1 1/2-18UNEF | 1 7/16-18UNEF | 86.51 | 39.67 |
| 28 | 50.01 | 38.31 | 34.80 | 18.26 | 1 3/4-18UNS | 1 7/16-18UNEF | 86.51 | 39.67 |
| 32 | 56.36 | 44.96 | 41.15 | 18.26 | 2 -18UNS | 1 3/4-18UNS | 95.25 | 47.63 |
| 36 | 62.71 | 50.29 | 46.69 | 18.26 | 2 1/4-16UN | 2 -18UNS | 100.03 | 52.37 |
