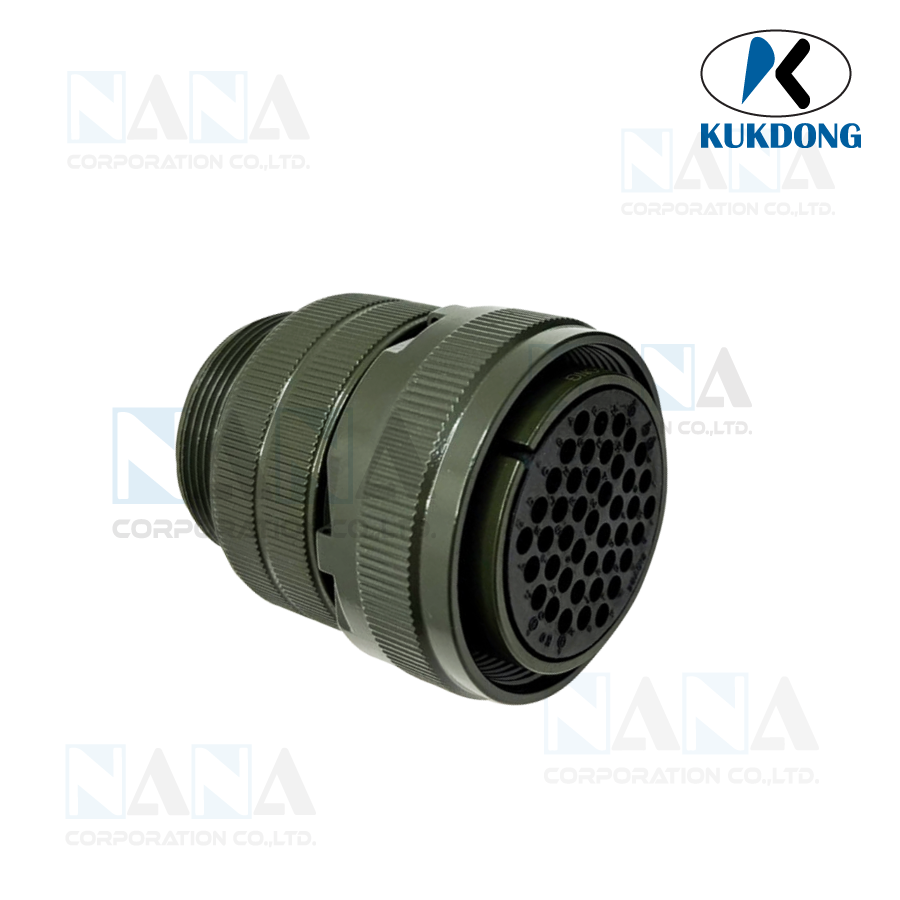

KD3101A28-51S, Plug/Female, 28A
Attribute:
คอนเนคเตอร์แบบกลม Circular Connector KUKDONG, KD3106 Class A, Made in Korea, good ranges of both military, general industrial.
Share
Categories : Connectors , Circular Military Connector ,
Brand : KUKDONG
Share
KD3101 Circular Military Connectors, KD3101 Class A
MS3101 Cable Connecting Plug
KD MIL - DTL - 5015 series Connectors were designed for the connection of electric and electronic device and KD connectors are used in wide ranges of both military and general industrial applications. With advantages of high quality, intermatability, reliability and low price, KF5015 connectors are designed, manufactured and tested to MIL - DTL - 5015, the Military Detailed Specificati.
| Shell size | A max | ØB max | ØD max | J THD-2A | K THD-2A | L max | M +0.79 | N | |
| max | min | ||||||||
| 10SL | 16.26 | 26.41 | 11.38 | 5/8-24UNEF | 5/8-24UNEF | 38.89 | 14.27 | 3.96 | 1.57 |
| 12s | 19.43 | 26.97 | 14.15 | 3/4-20UNEF | 5/8-24UNEF | 42.88 | 14.27 | 3.96 | 1.57 |
| 12 | 19.43 | 26.97 | 14.15 | 3/4-20UNEF | 5/8-24UNEF | 52.37 | 19.05 | 3.96 | 1.57 |
| 14s | 22.61 | 29.36 | 17.32 | 7/8-20UNEF | 3/4-20UNEF | 42.88 | 14.27 | 3.96 | 1.57 |
| 14 | 22.61 | 29.36 | 17.32 | 7/8-20UNEF | 3/4-20UNEF | 52.37 | 19.05 | 3.96 | 1.57 |
| 16s | 25.78 | 31.75 | 20.50 | 1 -20UNEF | 7/8-20UNEF | 42.88 | 14.27 | 3.96 | 1.57 |
| 16 | 25.78 | 31.75 | 20.50 | 1 -20UNEF | 7/8-20UNEF | 52.37 | 19.05 | 5.16 | 1.57 |
| 18 | 28.96 | 34.14 | 23.67 | 1 1/8-18UNEF | 1 -20UNEF | 52.37 | 19.05 | 5.16 | 2.39 |
| 20 | 32.13 | 37.31 | 26.87 | 1 1/4-18UNEF | 1 3/16-18UNEF | 55.58 | 19.05 | 5.16 | 2.39 |
| 22 | 35.31 | 40.49 | 30.02 | 1 3/8-18UNEF | 1 3/16-18UNEF | 55.58 | 19.05 | 5.16 | 2.39 |
| 24 | 38.48 | 43.66 | 33.20 | 1 1/2-18UNEF | 1 7/16-18UNEF | 58.72 | 20.62 | 5.16 | 2.39 |
| 28 | 44.83 | 50.01 | 38.76 | 1 3/4-18UNS | 1 7/16-18UNEF | 58.72 | 20.62 | 5.16 | 2.39 |
| 32 | 51.18 | 56.36 | 45.11 | 2 -18UNS | 1 3/4-18UNS | 61.93 | 22.23 | 5.16 | 3.18 |
| 36 | 63.50 | 52.71 | 50.67 | 2 1/4-16UN | 2 -18UNS | 61.93 | 22.23 | 5.16 | 3.18 |
| 40 | 63.88 | 69.06 | 57.02 | 2 1/2-16UN | 2 1/4-16UN | 61.93 | 22.23 | 5.16 | 3.18 |
