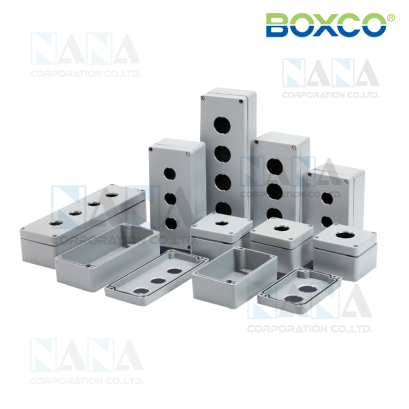

BOXCO BC-AGS-081108-2201 Plastic Push Botton Boxes
Attribute:
These enclosures have knockouts on both sides so it is easy to punch holes. Easy to installation of cable or wirings. For control box, junction box and many other applications.
Share
Categories : Enclosure Boxes - Cabinet , Push Button Box ,
Brand : BOXCO
Share
1. BOXCO's pushbutton enclosure is no need additional machining when you install 22, 25 or 30mm push button and switches.
2. Our pushbutton switch box is made from ABS and polycarbonate.
3. Switch boxes have 1,2 or 3 push button entries and it has 22mm molded knockouts in base for easy installation.
| Size(included cover) | Model | Hole | ||
|---|---|---|---|---|
| W X L X H(mm) | W X L X H(inch) | |||
| 80x110x70 | 3.15x4.33x2.76 | BC-AGS-081107-2201 | 22 | 1 HOLE |
| 80x110x85 | 3.15x4.33x3.35 | BC-AGS-081108-2201 | 22 | 1 HOLE |
| 80x130x70 | 3.15x5.12x2.76 | BC-AGS-081307-2202 | 22 | 2 HOLE |
| 80x130x85 | 3.15x5.12x3.35 | BC-AGS-081308-2202 | 22 | 2 HOLE |
| 80x180x70 | 3.15x7.09x2.76 | BC-AGS-081807-2203 | 22 | 3 HOLE |
| 80x180x85 | 3.15x7.09x3.35 | BC-AGS-081808-2203 | 22 | 3 HOLE |
| 80x250x70 | 3.15x9.84x2.76 | BC-AGS-082507-2204 | 22 | 4 HOLE |
| 80x250x85 | 3.15x9.84x3.35 | BC-AGS-082508-2204 | 22 | 4 HOLE |
| 80x110x70 | 3.15x4.33x2.76 | BC-AGS-081107-2501 | 25 | 1 HOLE |
| 80x110x85 | 3.15x4.33x3.35 | BC-AGS-081108-2501 | 25 | 1 HOLE |
| 80x130x70 | 3.15x5.12x2.76 | BC-AGS-081307-2502 | 25 | 2 HOLE |
| 80x130x85 | 3.15x5.12x3.35 | BC-AGS-081308-2502 | 25 | 2 HOLE |
| 80x180x70 | 3.15x7.09x2.76 | BC-AGS-081807-2503 | 25 | 3 HOLE |
| 80x180x85 | 3.15x7.09x3.35 | BC-AGS-081808-2503 | 25 | 3 HOLE |
| 80x250x70 | 3.15x9.84x2.76 | BC-AGS-082507-2504 | 25 | 4 HOLE |
| 80x250x85 | 3.15x9.84x3.35 | BC-AGS-082508-2504 | 25 | 4 HOLE |
| 80x110x70 | 3.15x4.33x2.76 | BC-AGS-081107-3001 | 30 | 1 HOLE |
| 80x110x85 | 3.15x4.33x3.35 | BC-AGS-081108-3001 | 30 | 1 HOLE |
| 80x130x70 | 3.15x5.12x2.76 | BC-AGS-081307-3002 | 30 | 2 HOLE |
| 80x130x85 | 3.15x5.12x3.35 | BC-AGS-081308-3002 | 30 | 2 HOLE |
| 80x180x70 | 3.15x7.09x2.76 | BC-AGS-081807-3003 | 30 | 3 HOLE |
| 80x180x85 | 3.15x7.09x3.35 | BC-AGS-081808-3003 | 30 | 3 HOLE |
| 80x250x70 | 3.15x9.84x2.76 | BC-AGS-082507-3004 | 30 | 4 HOLE |
| 80x250x85 | 3.15x9.84x3.35 | BC-AGS-082508-3004 | 30 | 4 HOLE |
