BC-AGQ-101509 BOXCO, Q Series ABS Plastic Enclosure

Name: BC-AGQ-101509 BOXCO, Q Series ABS Plastic Enclosure
Brand: BOXCO
SKU: BOXCO BC-AGQ-101509
Availability: InStock

Attribute:

BOXCO กล่องพลาสติกฝาทึบกันน้ำกันฝุ่น IP66/67 ขนาด (100x150x90 mm) ABS พลาสติกคุณภาพสูงแข็งแรงทนทานต่อการเปิด-ปิดและแรงกระแทกได้ดี ทนอุณภูมิสูง

Categories : Enclosure Boxes - Cabinet , Plastic Enclosure Box , Q-Series ,

Brand : BOXCO

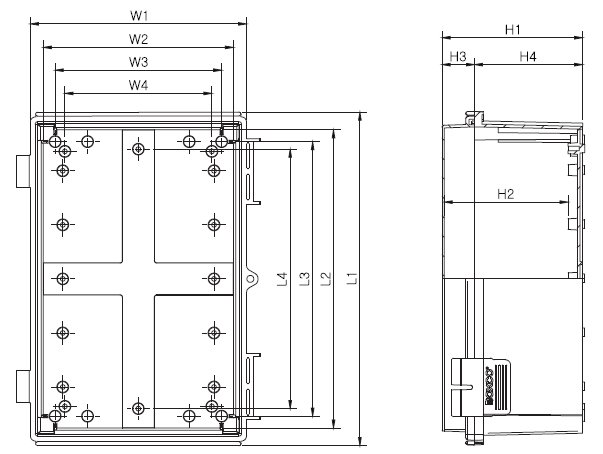

MODEL		Outside dimension			Inside dimension	Mounting Plate
MODEL		Outside dimension			Inside dimension	Steel SQ type	Plastic
ABS Grey cover	ABS Transparent cover	Cover (H3)	Base (H4)	Size (W1×L1×H1/mm)	Size (W2xL2xH2/mm)	Steel SQ type	G type	C type
BC-AGQ-101008-K	BC-ATQ-101008-K	20	60	100 x 100 x 80 x 25 (Knock out)	81 x 81 x 75	-	-	-
BC-AGQ-101509	BC-ATQ-101509	20	70	100 × 150 × 90	76 x 126 x 78	1015 SQ	1015 G	-
BC-AGQ-151509	BC-ATQ-151509	20	70	150 × 150 × 90	129 x 129 x 78	1515 SQ	1515 G	-
BC-AGQ-151512	BC-ATQ-151512	20	100	150 × 150 × 120	129 x 129 x 108	1515 SQ	1515 G	-
BC-AGQ-162110	BC-ATQ-162110	20	80	160 × 210 × 100	136 x 186 x 88	1520 SQ	1520 G	-
BC-AGQ-162113	BC-ATQ-162113	20	110	160 × 210 × 130	136 x 186 x 118	1520 SQ	1520 G	-
BC-AGQ-212113	BC-ATQ-212113	20	110	210 × 210 × 130	183 x 183 x 118	2020 SQ	2020 G	-
BC-AGQ-203013	BC-ATQ-203013	30	100	200 × 300 × 130	175 x 275 x 114	2030 SQ	2030 G	2030 C
BC-AGQ-203014	BC-ATQ-203014	30	110	200 × 300 × 140	175 x 275 x 104	2030 SQ	2030 G	2030 C
BC-AGQ-203015	BC-ATQ-203015	30	120	200 × 300 × 150	175 x 275 x 134	2030 SQ	2030 G	2030 C
BC-AGQ-203018	BC-ATQ-203018	30	150	200 × 300 × 180	175 x 275 x 164	2030 SQ	2030 G	2030 C
BC-AGQ-253516	BC-ATQ-253516	30	130	250 × 350 × 160	225 x 325 x 144	2535 SQ	2535 G	2535 C
BC-AGQ-303016	BC-ATQ-303016	30	130	300 × 300 × 160	270 x 270 x 144	3030 SQ	3030 G	3030 C
BC-AGQ-304015	BC-ATQ-304015	30	120	300 × 400 × 150	275 x 375 x 141	3040 SQ	3040 G	3040 C
BC-AGQ-304016	BC-ATQ-304016	30	130	300 × 400 × 160	275 x 375 x 144	3040 SQ	3040 G	3040 C
BC-AGQ-304018	BC-ATQ-304018	30	150	300 × 400 × 180	275 x 375 x 164	3040 SQ	3040 G	3040 C
BC-AGQ-354520	BC-ATQ-354520	30	170	350 × 450 × 200	317 x 417 x 183	3545 SQ	3545 G	-
BC-AGQ-405016	BC-ATQ-405016	30	130	400 × 500 × 160	369 x 469 x 143	4050 SQ	4050 G	-
BC-AGQ-405020	BC-ATQ-405020	30	170	400 × 500 × 200	369 x 469 x 183	4050 SQ	4050 G	-

กล่องพลาสติกฝาใสกันน้ำ Plastic Enclosure Boxes Boxco Enclosure Box กล่องกันน้ำBoxco กล่องพักสายไฟ BC-AGQ-101509 BOXCO BC-AGQ-101509 Q Series
