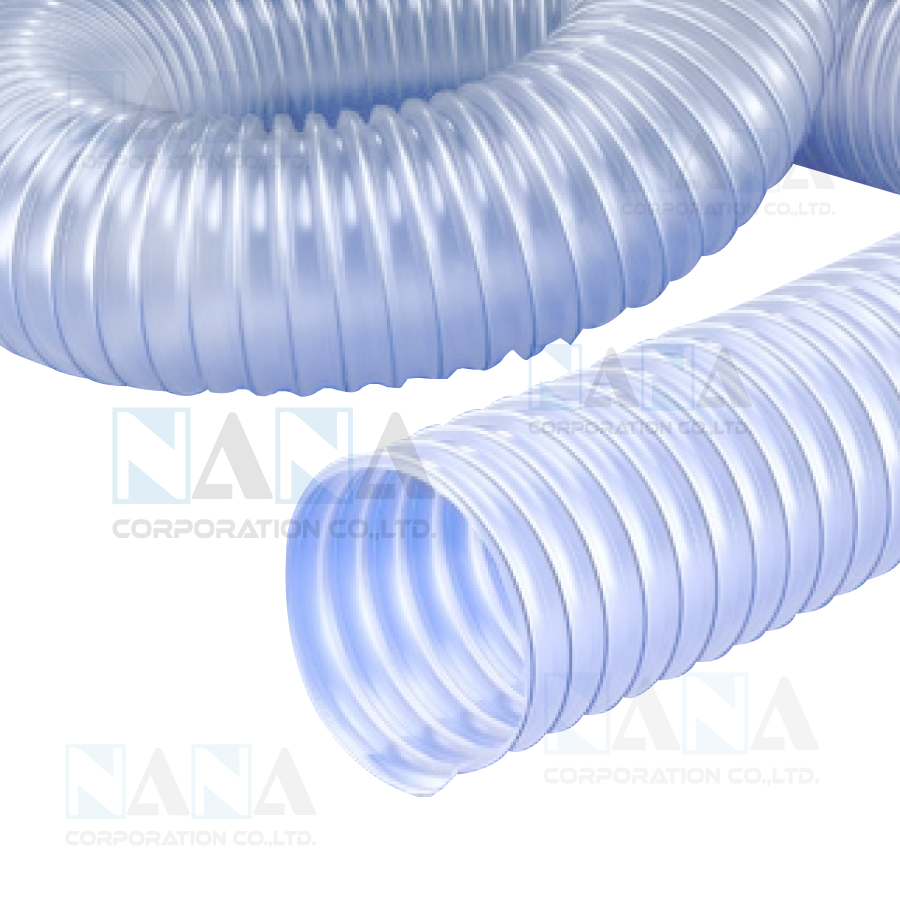

9-1 PVC AS FLEX HOSE
Attribute:
For transporting inflammable bulk materials and in areas liable to contain explosive mixtures (explosion protection),for powdery solids such as dust, powder and fiber
Share
Categories : Flexible Duct Hoses ท่ออุตสาหกรรม , PVC Ducts Hoses ,
Share
9-1 PVC AS FLEX HOSE
Applications :
- for transporting inflammable bulk materials and in areas liable to contain explosive mixtures (explosion protection)
- for powdery solids such as dust, powder and fibre
- for gaseous media such as vapor and smoke
- for air conditioning and ventilation technologe
Construction : spring steel wire integrated in wall
wall : antistatic PVC
Material:
wall: antistatic PVC
spiral: zinc-coated spring steel wire wall : wall: antistatic PVC
Standard Color: tansparent
Feature :
- optimized flow properties
- good resistance to alkalis and acids
- good resistance to chemicals
- kink-proof
- capable of electrostatic discharge by grounding the spiral
- super-light
- compressible 3:1
- flame-retardant according to UL94-HB
- electrical and surface resistance ≤109Ω
Specification : ø 38 to ø 203 mm
| Part No. | I.D. (mm.) | O.D. (mm.) | Over pressure (bar) | Vacuum (bar) | Bending Radius (mm.) | Weight (kg/m) | Stock Lengths (m) |
| 9-1-038 | 38 | 46 | 0.500 | 0.180 | 46 | 0.26 | 15 |
| 9-1-051 | 51 | 59 | 0.400 | 0.150 | 59 | 0.30 | 15 |
| 9-1-063 | 63 | 71 | 0.300 | 0.100 | 71 | 0.33 | 15 |
| 9-1-076 | 76 | 84 | 0.270 | 0.080 | 84 | 0.40 | 15 |
| 9-1-102 | 102 | 110 | 0.200 | 0.050 | 110 | 0.57 | 15 |
| 9-1-127 | 127 | 135 | 0.160 | 0.030 | 135 | 0.77 | 15 |
| 9-1-152 | 152 | 160 | 0.140 | 0.030 | 160 | 0.90 | 15 |
| 9-1-178 | 178 | 186 | 0.120 | 0.030 | 186 | 1.15 | 15 |
| 9-1-203 | 203 | 211 | 0.100 | 0.025 | 211 | 1.30 | 15 |
